User’s Manual of MGSW-24160F
30
There is a power switch that is for AC power input using only. As DC power input has no power switch.
The device is a power-required device, it means, it will not work till it is powered. If your
networks should active all the time, please consider using UPS (Uninterrupted Power Supply)
for your device. It will prevent you from network data loss or network downtime.
In some area, installing a surge suppression device may also help to protect your Managed
Switch from being damaged by unregulated surge or current to the Switch or the power
adapter.
2.2 Install the Switch
This section describes how to install your Managed Switch and make connections to the Managed Switch. Please read the
following topics and perform the procedures in the order being presented. To install your Managed Switch on a desktop or shelf,
simply complete the following steps.
2.2.1 Desktop Installation
To install the Managed Switch on desktop or shelf, please follows these steps:
As desktop and rackmount installation demonstration as following is an example for
SGSW-24040, however, the installation procedure of MGSW-24160F is the same with
SGSW-24040.
Step1: Attach the rubber feet to the recessed areas on the bottom of the Managed Switch.
Step2: Place the Managed Switch on the desktop or the shelf near an AC power source, as shown in Figure 2-4.

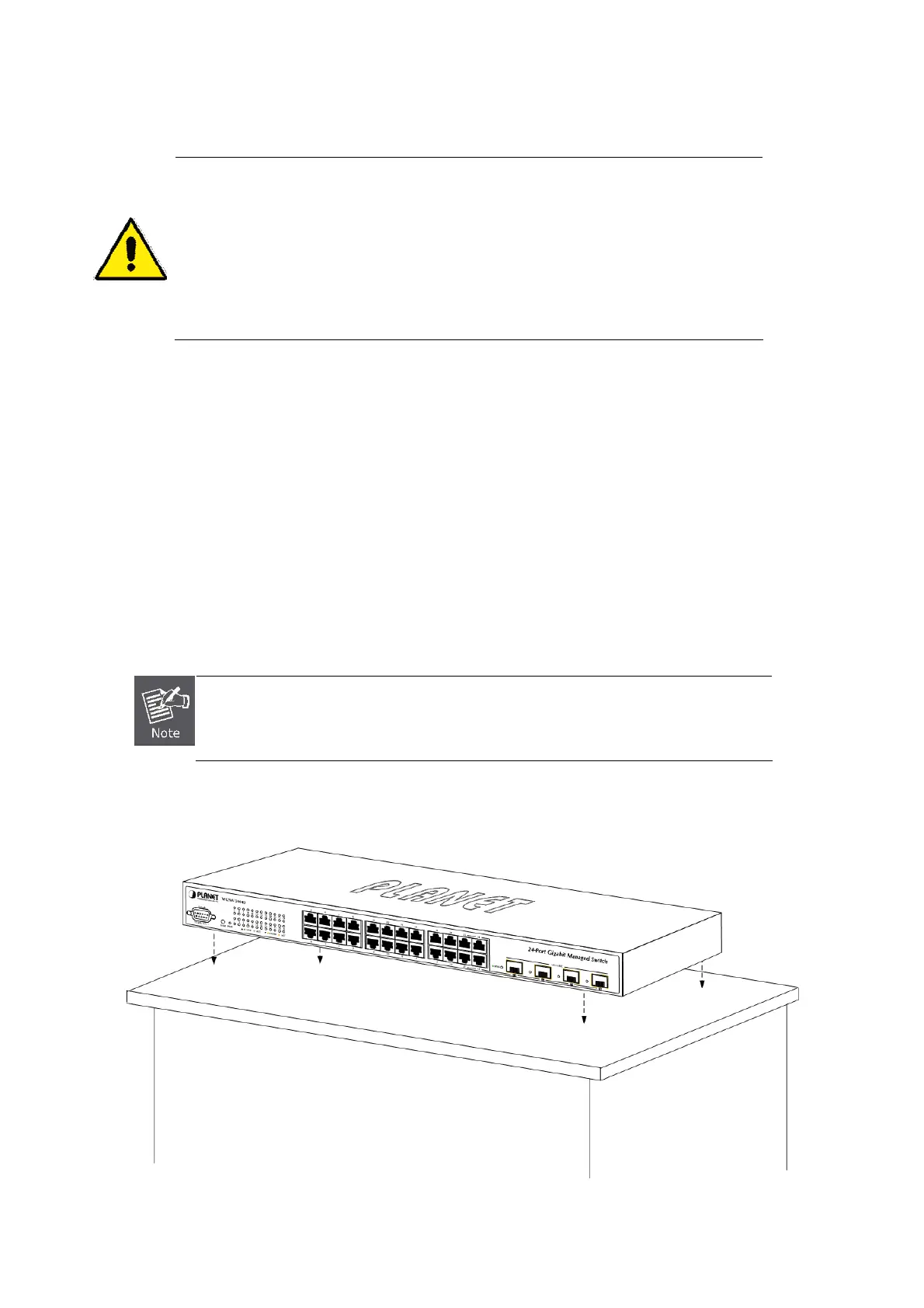

Figure 2-4 Place the Managed Switch on the Desktop

Table of Contents

Other manuals for Planet MGSW-24160F

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planet MGSW-24160F and is the answer not in the manual?

Planet MGSW-24160F Specifications

General IconGeneral
Console portRS-232
Compatible memory cardsNot supported
SFP module slots quantity16
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supportedYes
Throughput35.6 Mpps
Jumbo frames10000
MAC address table16000 entries
Form factor1U
Product colorBlue
Number of fans2 fan(s)
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)38 W
Number of multicast groups filtered255
Switch typeManaged
Switch layerL2+
DHCP featuresDHCP server, DHCP client
Security algorithmsSNMP, SSH, SSL/TLS
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)5 - 95 %
Transmission distance (max)120 km
Fiber ethernet cabling technology1000BASE-X
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth200 mm
Width440 mm
Height44.5 mm
Weight3000 g
