User’s Manual of MGSW-24160F
281
Buttons
: Click to save changes.
: Click to undo any changes made locally and revert to previously saved values.
4.14.3 LLDPMED Configuration
This page allows you to configure the LLDP-MED. The LLDPMED Configuration screen in Figure 4-14-2 appears.

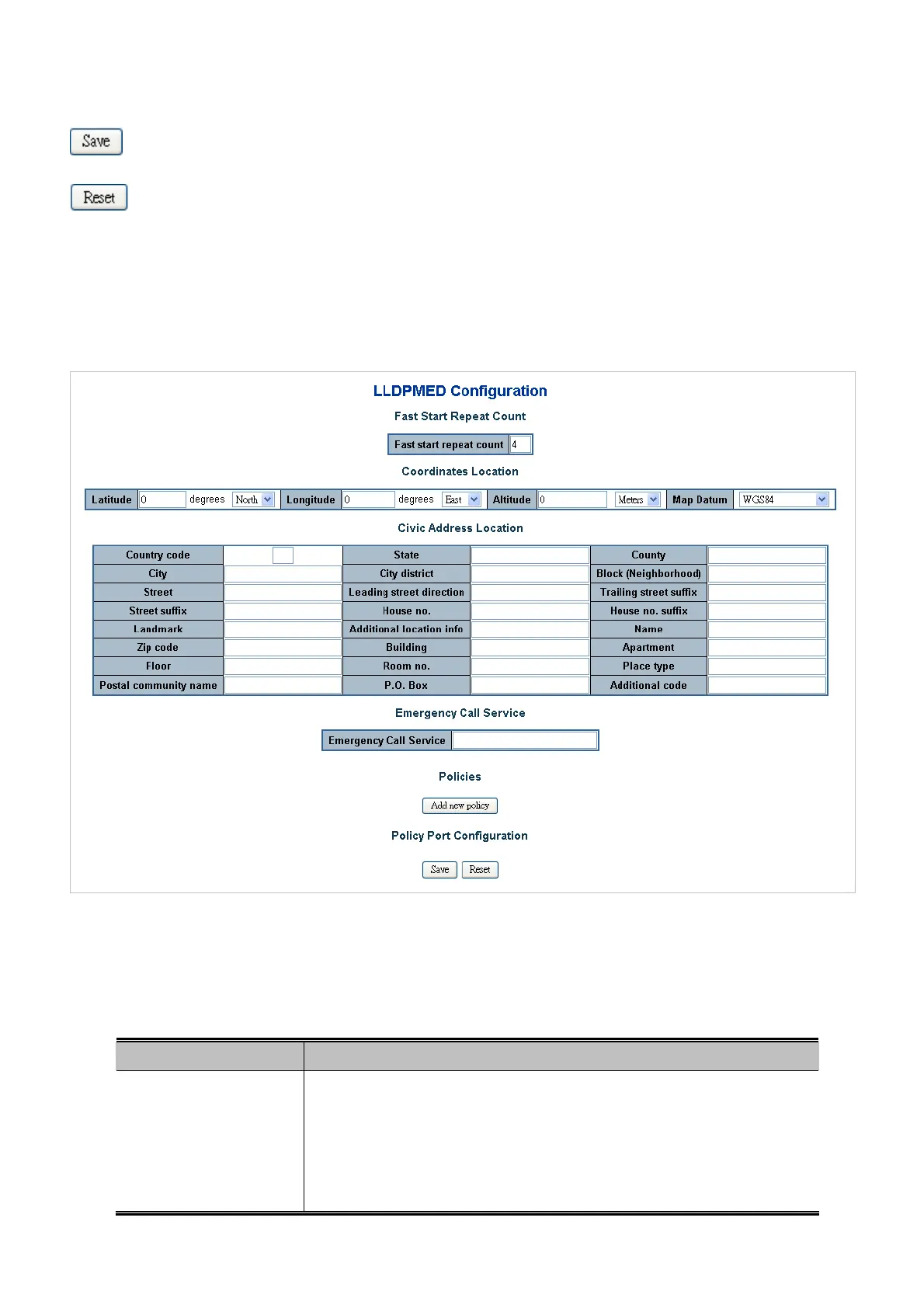

Figure 4-14-2 LLDPMED Configuration p Page Screenshot
The page includes the following fields:
Fast start repeat count
Object Description
Fast start repeat count
Rapid startup and Emergency Call Service Location Identification Discovery of
endpoints is a critically important aspect of VoIP systems in general.In addition, it
is best to advertise only those pieces of information which are specifically
relevant to particular endpoint types (for example only advertise the voice
network policy to permitted voice-capable devices), both in order to conserve the
