User’s Manual of MGSW-24160F
73
4.2.18 Configuration Upload
This function allows backup and reload the current configuration of the Managed Switch to the local management station. The
Configuration Upload screen in Figure 4-2-24 appears.

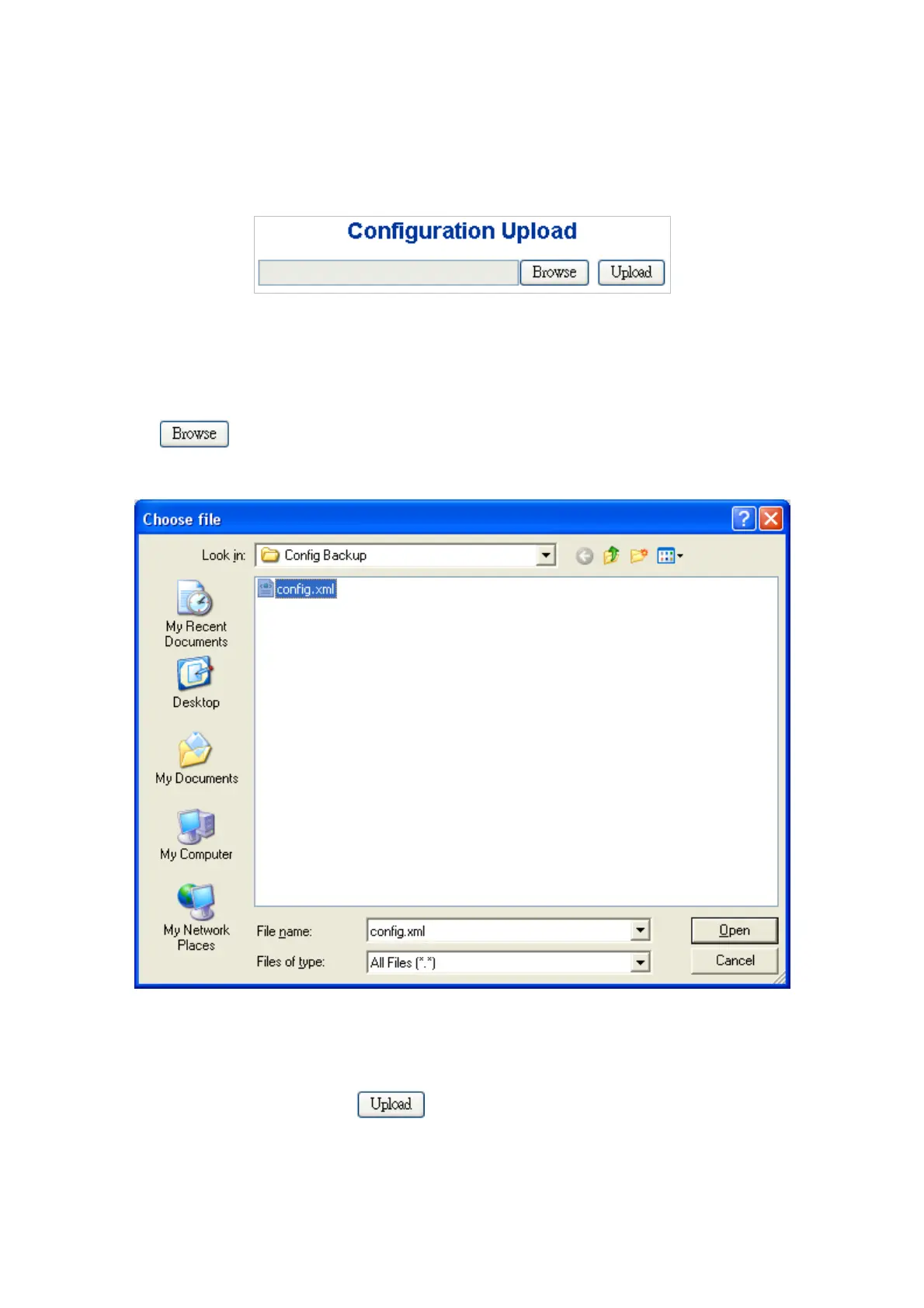

Figure 4-2-24 Configuration Upload Page Screenshot
Configuration Upload
1. Click the “ ” button of the main page, the system would pop up the file selection menu to choose saved
configuration. The Configuration screen in Figure 4-2-25 appears.
Figure 4-2-25 Windows File Selection Menu Popup
2. Select on the configuration file then click “
”, the bottom of the browser shows the upload status.
3. After down, the main screen appears “Transfer Completed”.
