User’s Manual of MGSW-24160F
47
4.1 Main Web Page
The Managed Switch provides a Web-based browser interface for configuring and managing it. This interface allows you to
access the Managed Switch using the Web browser of your choice. This chapter describes how to use the Managed Switch’s
Web browser interface to configure and manage it.

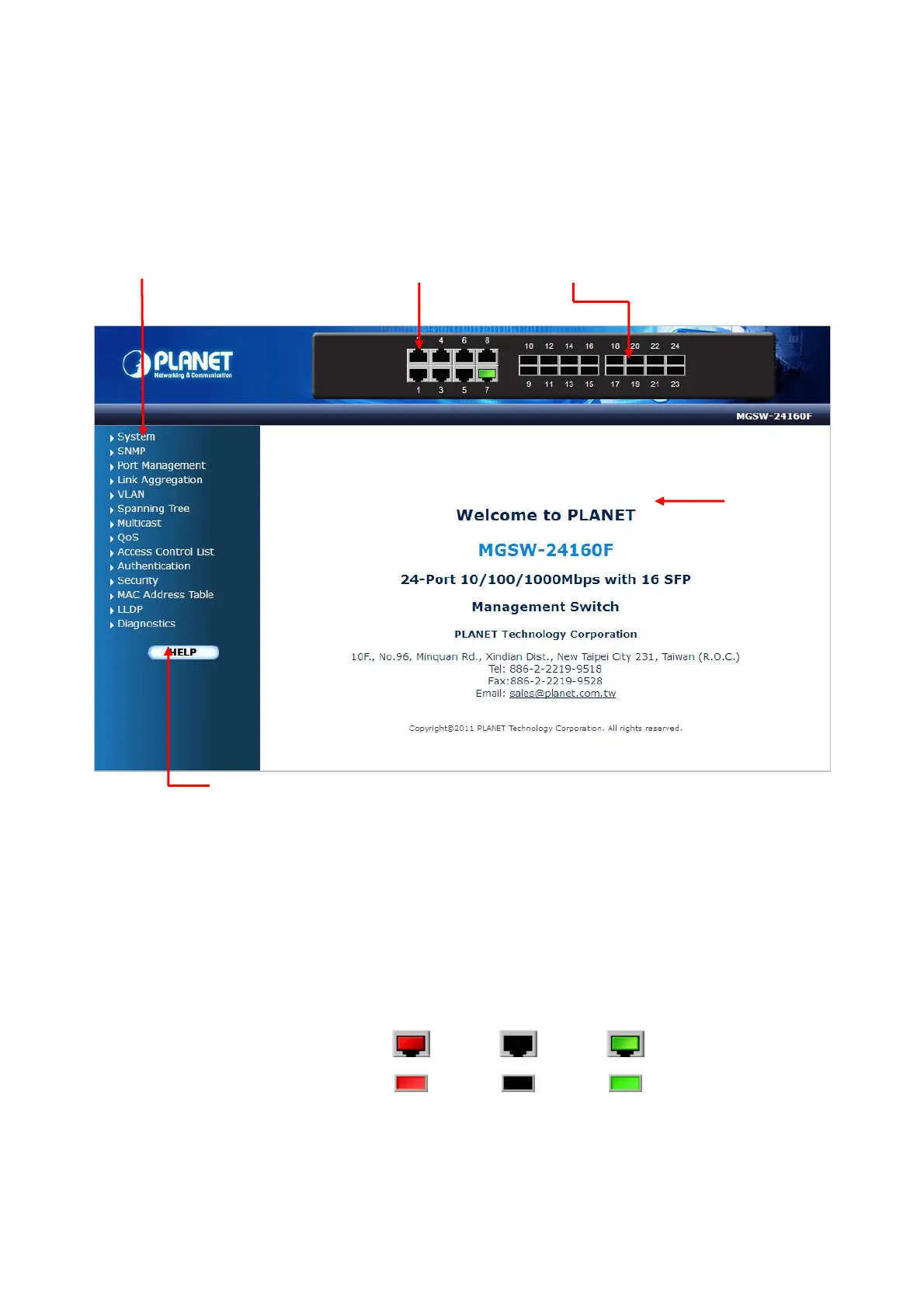

Figure 4-1-4 Main Page
Panel Display
The web agent displays an image of the Managed Switch’s ports. The Mode can be set to display different information for the
ports, including Link up or Link down. Clicking on the image of a port opens the Port Statistics page.
The port states are illustrated as follows:
State Disabled Down Link
RJ-45 Ports
SFP Ports
Main Functions Menu
SFP Port Link Status
Main Screen
Help Button
Copper Port Link Status

Table of Contents

Other manuals for Planet MGSW-24160F

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Planet MGSW-24160F and is the answer not in the manual?

Planet MGSW-24160F Specifications

General IconGeneral
Console portRS-232
Compatible memory cardsNot supported
SFP module slots quantity16
Installed SFP modules quantity0
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
10G supportNo
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN featuresPrivate VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supportedYes
Throughput35.6 Mpps
Jumbo frames10000
MAC address table16000 entries
Form factor1U
Product colorBlue
Number of fans2 fan(s)
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (max)38 W
Number of multicast groups filtered255
Switch typeManaged
Switch layerL2+
DHCP featuresDHCP server, DHCP client
Security algorithmsSNMP, SSH, SSL/TLS
Storage temperature (T-T)-10 - 70 °C
Operating temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)5 - 95 %
Transmission distance (max)120 km
Fiber ethernet cabling technology1000BASE-X
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth200 mm
Width440 mm
Height44.5 mm
Weight3000 g
