4.9.2.4 Set up VLAN Tag Priority Mapping
Set up the traffic class mapping to the User Priority value (3 bits) when receiving VLAN tagged packets.
The Set up VLAN Tag Priority Mapping screen in Figure 4-9-6 appears.

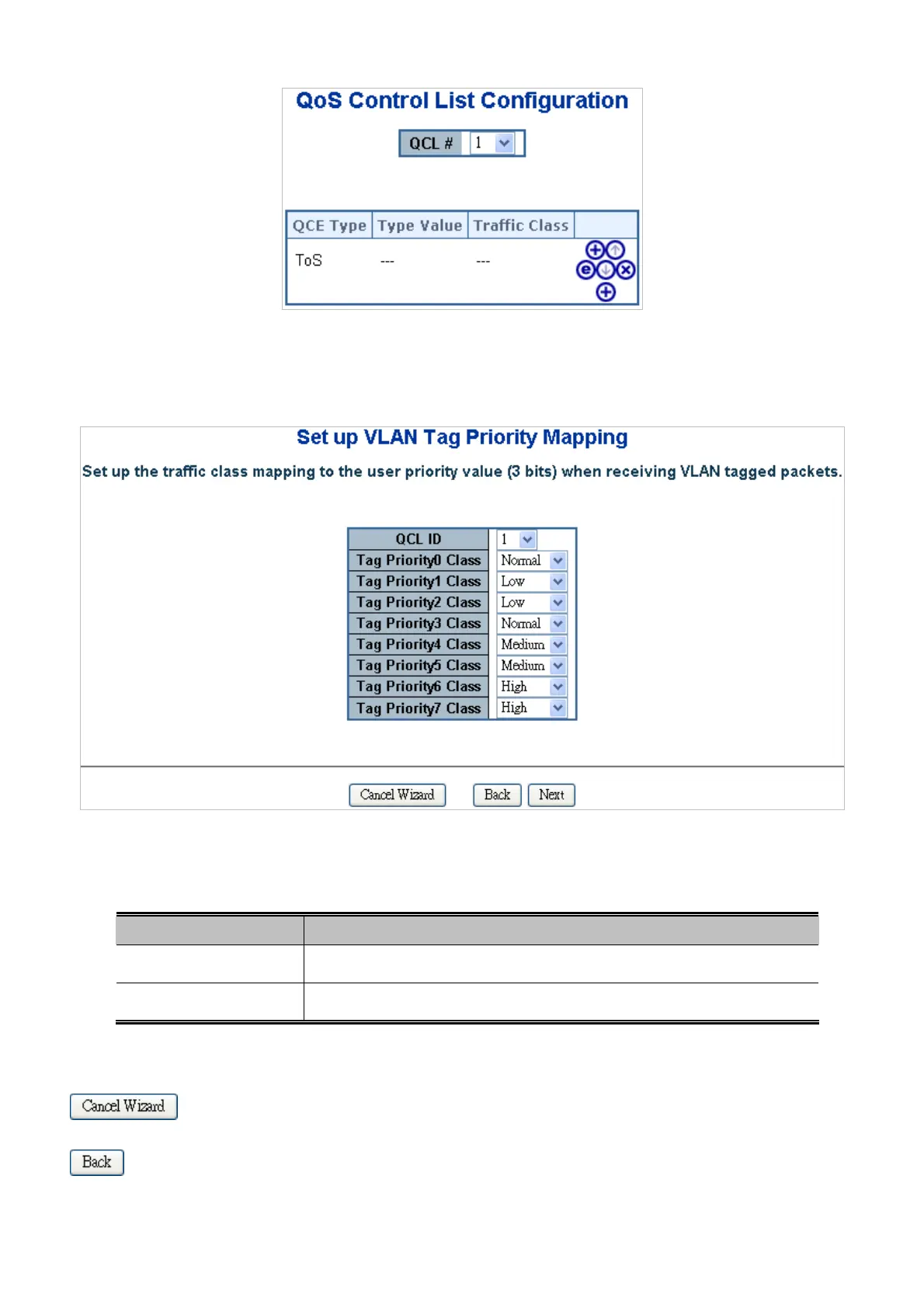

Figure 4-9-6 Set up VLAN Tag Priority Mapping Page Screenshot
The page includes the following fields:
Object Description
QCL ID
Select the QCL ID to which this QCE applies.
VLAN Priority Class
Select a traffic class of Low, Normal, Medium, or High to apply to the QCE.
Buttons
: Click to cancel the wizard.
: Click to go back to the previous wizard step.
