User’s Manual of MGSW-24160F
197

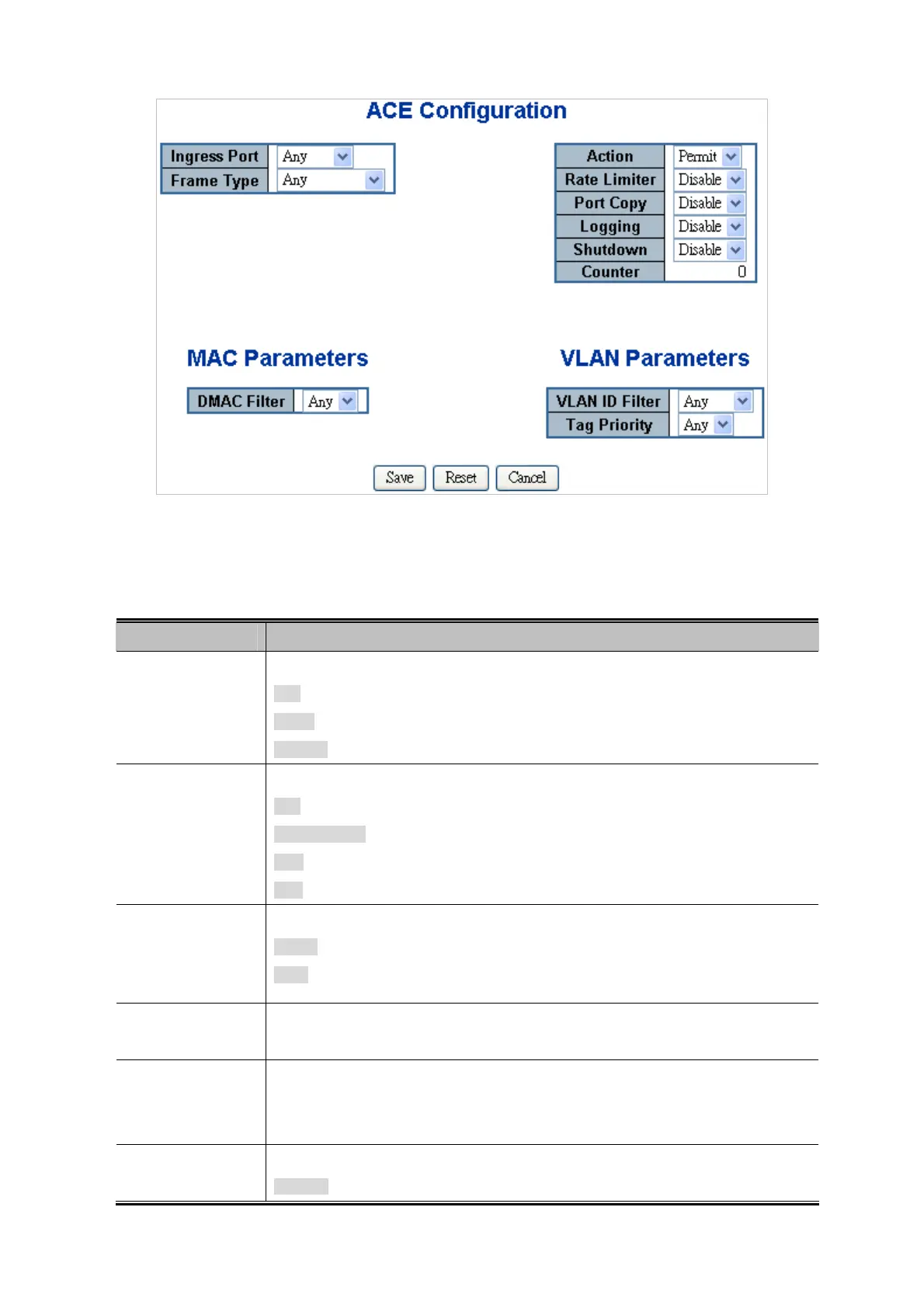

Figure 4-10-3 ACE Configuration Page Screenshot
The page includes the following fields:
Object Description
Ingress Port
Select the ingress port for which this ACE applies.
Any: The ACE applies to any port.
Port n: The ACE applies to this port number, where n is the number of the switch port.
Policy n: The ACE applies to this policy number, where n can range from 1 through 8.
Frame Type
Select the frame type for this ACE.
Any: Any frame can match this ACE.
Ethernet Type: Only Ethernet Type frames can match this ACE.
ARP: Only ARP frames can match this ACE.
IPv4: Only IPv4 frames can match this ACE.
Action
Specify the action to take with a frame that hits this ACE.
Permit: The frame that hits this ACE is granted permission for the ACE operation.
Deny: The frame that hits this ACE is dropped.
Rate Limiter
Specify the rate limiter in number of base units. The allowed range is 1 to 15. Disabled
indicates that the rate limiter operation is disabled.
Port Copy
Frames that hit the ACE are copied to the port number specified here. The allowed
range is the same as the switch port number range. Disabled indicates that the port
copy operation is disabled.
Logging
Specify the logging operation of the ACE. The allowed values are:
Enabled: Frames matching the ACE are stored in the System Log.
