User’s Manual of MGSW-24160F
38

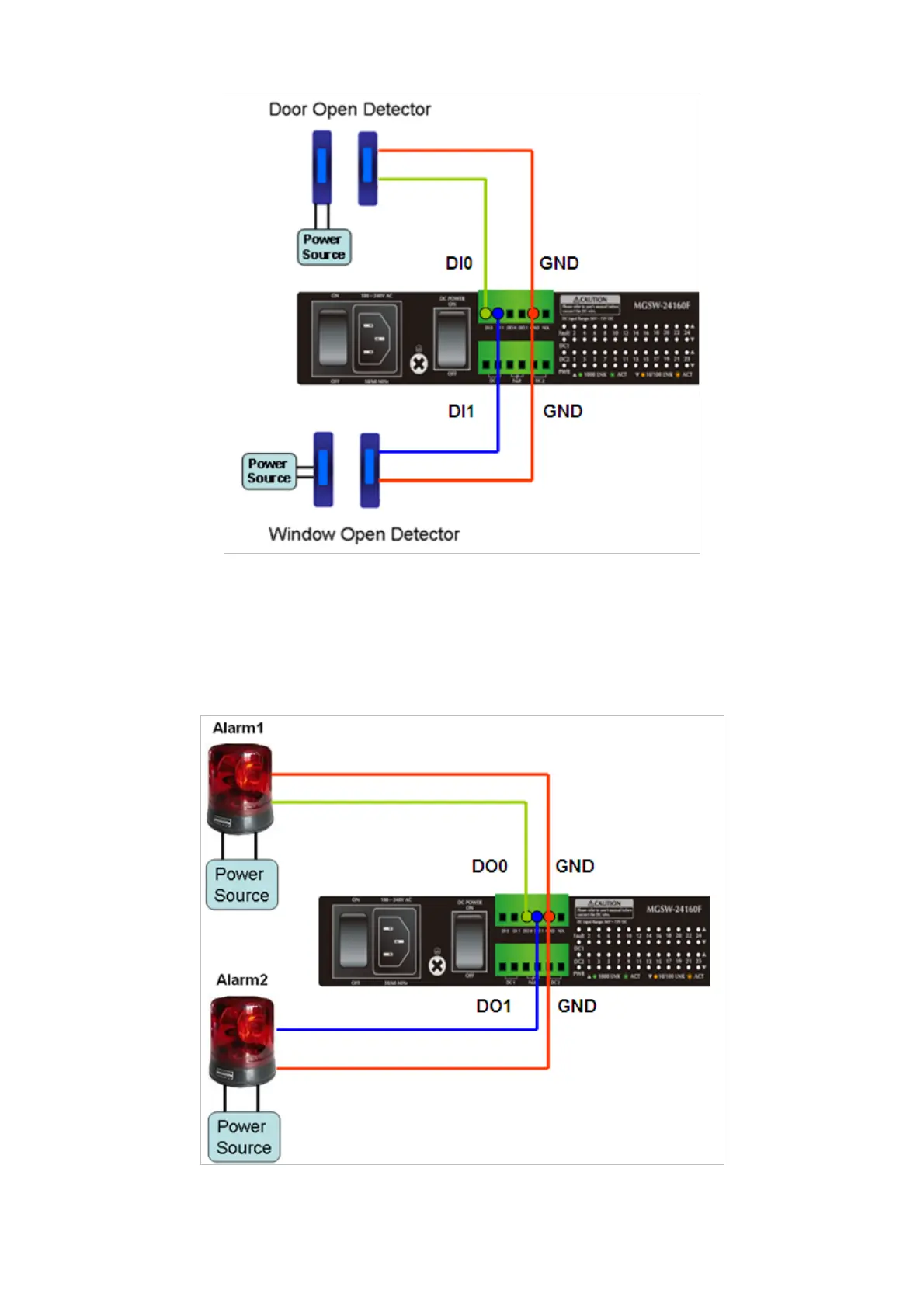

Figure 2-13 Wires DI0 and DI1 to Open Detector
4. There are two Digital Output groups for you to sense MGSW-24160F port faile or power fail and issue a high or low signal
to external device. As following topology shows how to wire DO0 and DO1.
Figure 2-14 Wires DO0 and DO1 to Open Detector
