Planet MGSW-24160F User Manual

User’s Manual of MGSW-24160F
41

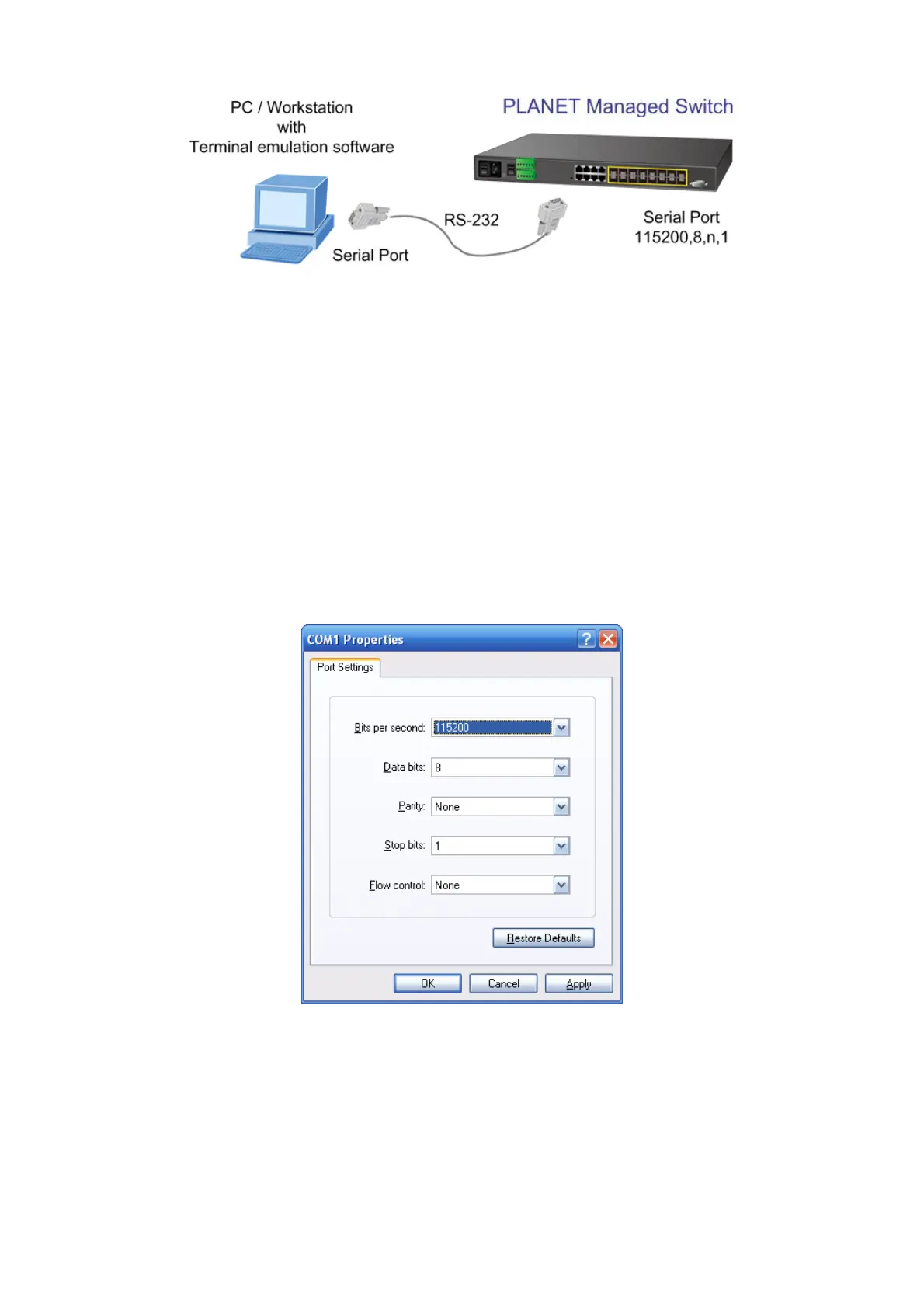

Figure 3-1 Console Management Diagram
Direct Access
Direct access to the administration console is achieved by directly connecting a terminal or a PC equipped with a
terminal-emulation program (such as HyperTerminal) to the Managed Switch console (serial) port.
When using this management method, a straight DB9 RS-232 cable is required to connect the switch to the PC. After
making this connection, configure the terminal-emulation program to use the following parameters:
The default parameters are:
 115200 bps
 8 data bits
 No parity
 1 stop bit
Figure 3-2 Terminal Parameter Settings
You can change these settings, if desired, after you log on. This management method is often preferred because you can
remain connected and monitor the system during system reboots. Also, certain error messages are sent to the serial port,
regardless of the interface through which the associated action was initiated. A Macintosh or PC attachment can use any
terminal-emulation program for connecting to the terminal serial port. A workstation attachment under UNIX can use an emulator
such as TIP.

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	200 mm
Width	440 mm
Height	44.5 mm
Weight	3000 g
