User’s Manual of MGSW-24160F

The Remote ID sub-option was designed to carry information relating to the remote host end of the circuit.

The definition of Circuit ID in the switch is 4 bytes in length and the format is "vlan_id" "module_id" "port_no". The parameter of

"vlan_id" is the first two bytes represent the VLAN ID. The parameter of "module_id" is the third byte for the module ID. The

parameter of "port_no" is the fourth byte and it means the port number.

The Remote ID is 6 bytes in length, and the value is equal the DHCP relay agent’s MAC address. The DHCP Relay

Configuration screen in Figure 4-2-11 appears.

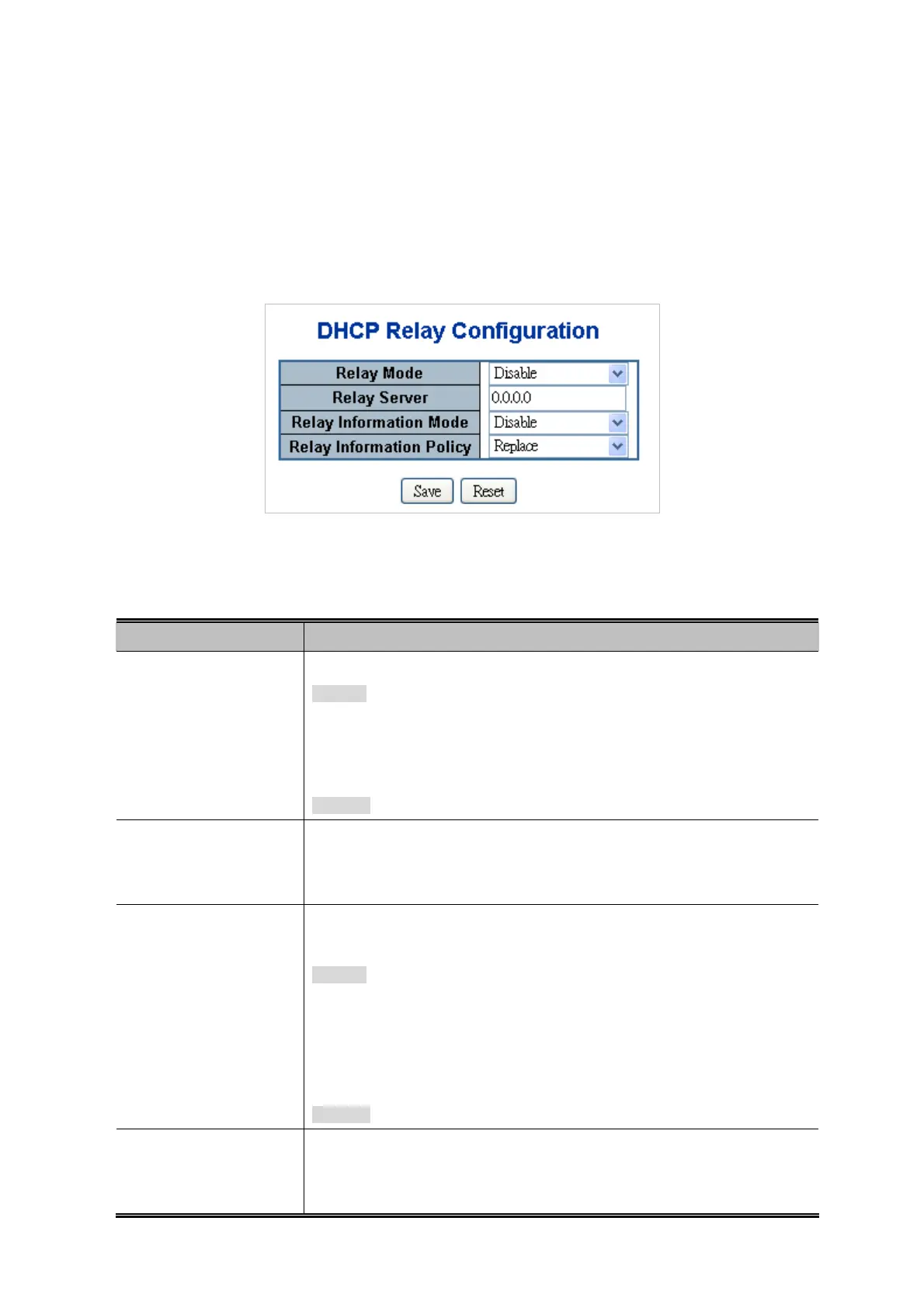

Figure 4-2-11 DHCP Relay

Configuration Page Screenshot

The page includes the following fields:

Object Description

 Relay Mode

Indicates the DHCP relay mode operation. Possible modes are:

Enabled: Enable DHCP relay mode operation. When enable DHCP relay mode

operation, the agent forward and to transfer DHCP messages between the

clients and the server when they are not on the same subnet domain. And the

DHCP broadcast message won't flood for security considered.

Disabled: Disable DHCP relay mode operation.

 Relay Server

Indicates the DHCP relay server IP address. A DHCP relay agent is used to

for

ward and to transfer DHCP messages between the clients and the server

when they are not on the same subnet domain.

 Relay Information

Mode

Indicates the DHCP relay information mode option operation. Possible modes

are:

Enabled: Enable DHCP relay information mode operation. When enable DHCP

relay information mode operation, the agent insert specific information (option

82) into a DHCP message when forwarding to DHCP server and remove it from a

DHCP message when transferring to DHCP client. It only works under DHCP

relay operation mode enabled.

Disabled: Disable DHCP relay information mode operation.

 Relay Information

Policy

Indicates the DHCP relay information option policy. When enable DHCP relay

information mode operation, if agent receives a DHCP message that already

contains relay agent information. It will enforce the policy. And it only works under

Planet MGSW-24160F Specifications

General

Console port	RS-232
Compatible memory cards	Not supported
SFP module slots quantity	16
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN, Port-based VLAN
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX
MAC address auto-learning supported	Yes
Throughput	35.6 Mpps
Jumbo frames	10000
MAC address table	16000 entries
Form factor	1U
Product color	Blue
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	38 W
Number of multicast groups filtered	255
Switch type	Managed
Switch layer	L2+
DHCP features	DHCP server, DHCP client
Security algorithms	SNMP, SSH, SSL/TLS
Storage temperature (T-T)	-10 - 70 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	5 - 95 %
Transmission distance (max)	120 km
Fiber ethernet cabling technology	1000BASE-X
Harmonized System (HS) code	85176990
