User’s Manual of MGSW-24160F
98

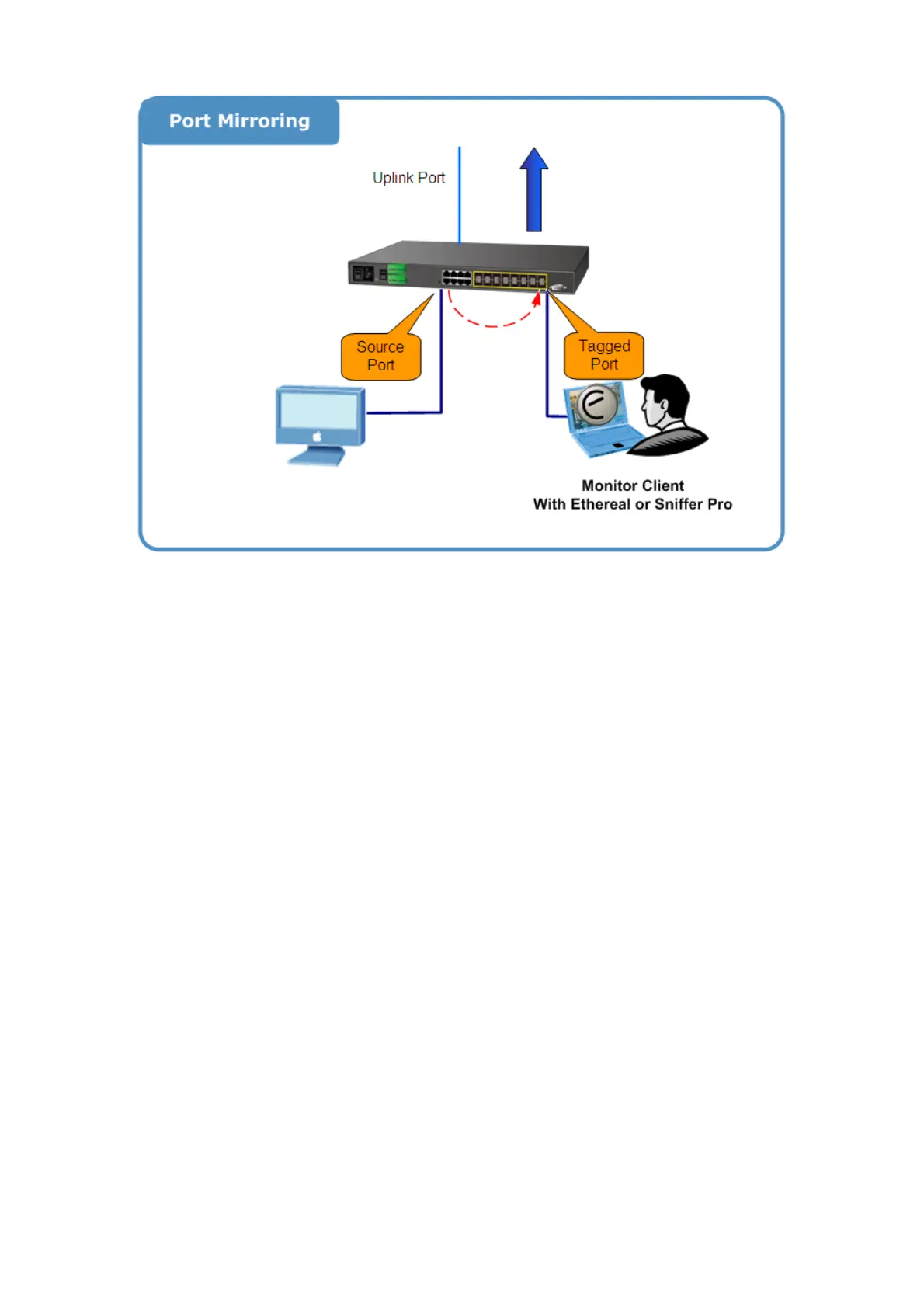

Figure 4-4-5 Port Mirror application
The traffic to be copied to the mirror port is selected as follows:
All frames received on a given port (also known as ingress or source mirroring).
All frames transmitted on a given port (also known as egress or destination mirroring).
Mirror Port Configuration
The Port Mirror Configuration screen in Figure 4-4-6 appears.
