MacBAT 5 – USER GUIDE. Version 1.0

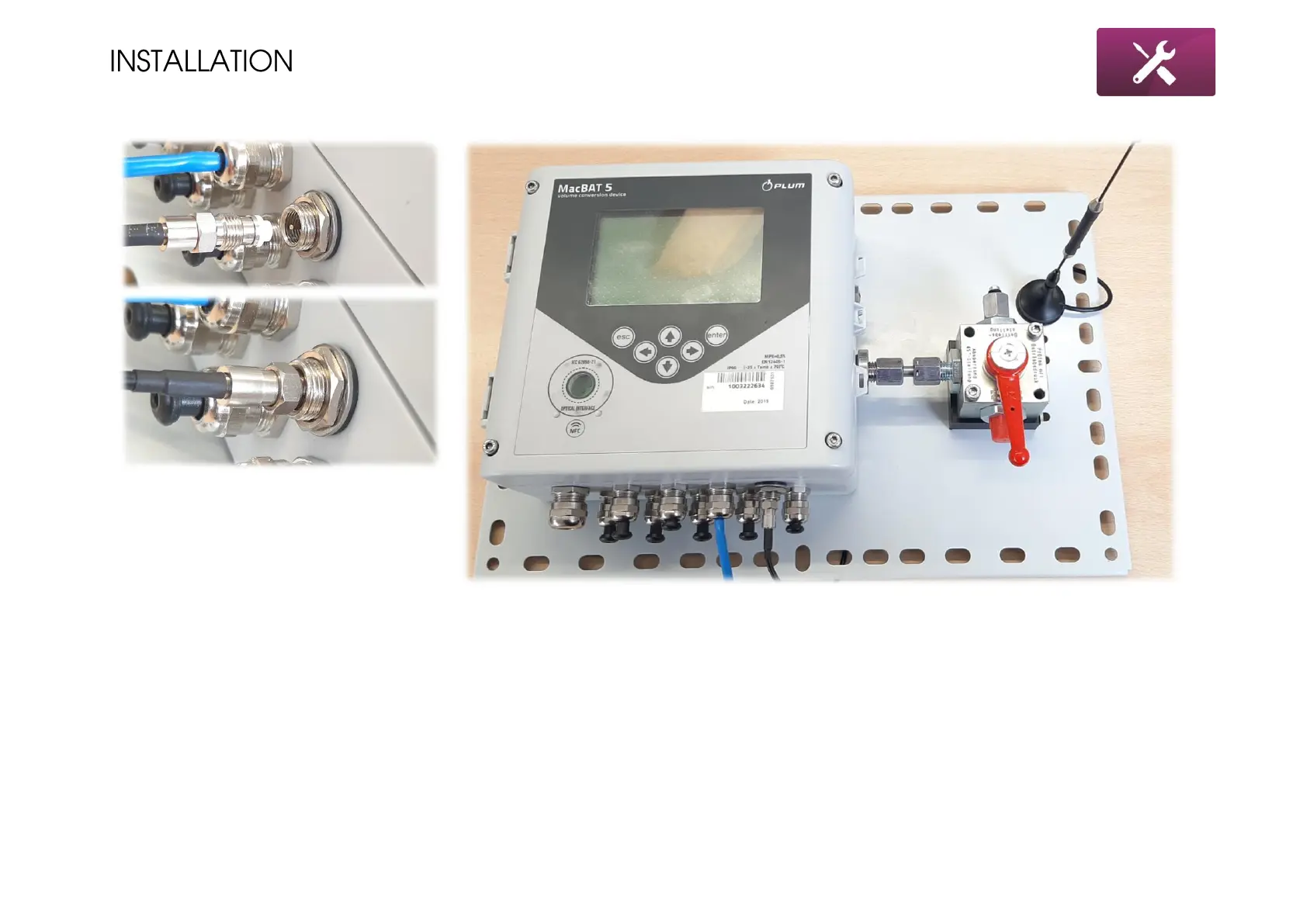

4. Place the antenna in the FME socket finishing the installation part – if device is equipped with internal modem.
Tighten the antenna in the socket
ensuring it will not fall out
Attached antenna has magnetic base so it can be installed on any metal element. Finished
installation is presented in the picture above. Device is ready for connection of the pressure
and measurement circuits.
