MacBAT 5 – USER GUIDE. Version 1.0
Description:

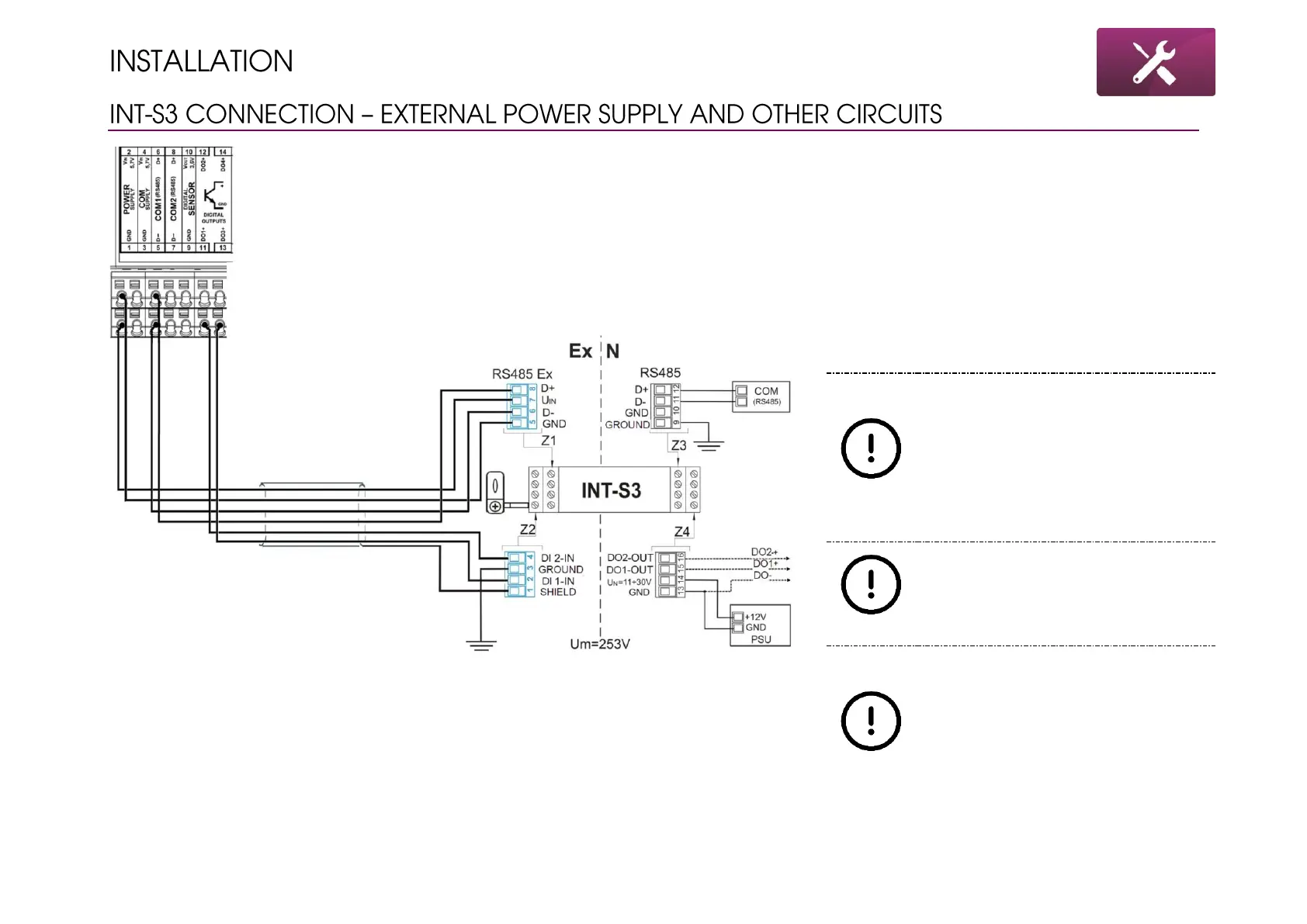

1. There is one single cable coming out from
INT-S3 to MacBAT5
2. To ensure transmission on second COM
port and/or using another two DOs it can
be used another INT-S3 with power supply
connected to terminals 13-14. To MacBAT
5 there should be going cable from
terminals 2,4,6,8
When MacBAT 5 works in Ex
Zone only INT-S3 can be
connected directly to its
terminals. Any other equipment
must be connected to INT-S3
side marked as N – black
terminals.
INT-S3 requires supply voltage
10,5-30V DC. Do not connect
230V mains directly to its
terminals!
When connected to power supply
B1 battery must be inserted in
MacBAT 5 incessantly. Work
without battery is forbidden. In
case of power loss, device
without battery will not start up
again.
