MacBAT 5 – USER GUIDE. Version 1.0
Device can be installed on the gas pipe using the universal mounting plate dedicated for both variants, polycarbonate and aluminium.
Mounting plate is designed basically to be compatible with AZ intec 3MT01 3-way valve. Using other valve may require
additional equipment not included in default set. Mentioned valve is not a part of equipment for the mounting plate.
There are two variants of mounting plates – separately for polycarbonate and aluminium housing. Please note you are
equipped with proper set.

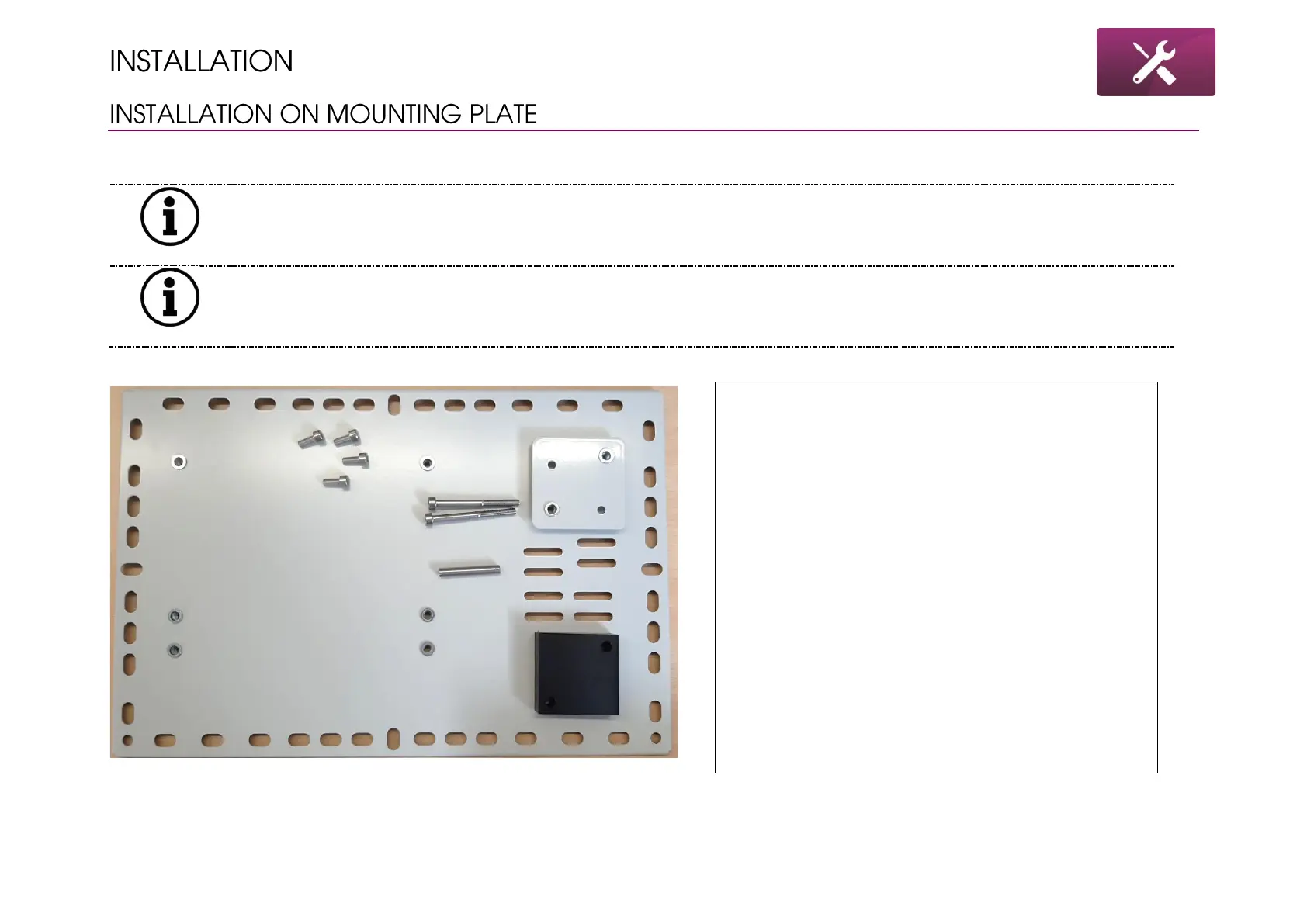

1. Mounting plate 368x240mm
2. Plate for bottom tightening three way valve –
60x60mm
3. a) Spacer to adjust the levels of ports in
MacBAT 5 polycarbonate pressure sensor and
AZ Intec three way valve – 15mm height.
b) Spacer 18,45mm for MacBAT 5 in aluminium
housing
4. a) 4x M5x12 Allen screw to tighten MacBAT 5
polycarbonate to the plate
b) 4x M5x30 Allen screws to tighten MacBAT 5
aluminium to the plate
5. 40mm line of 6mm diameter pipe to connect
MacBAT 5 pressure sensor and three way valve
ports
