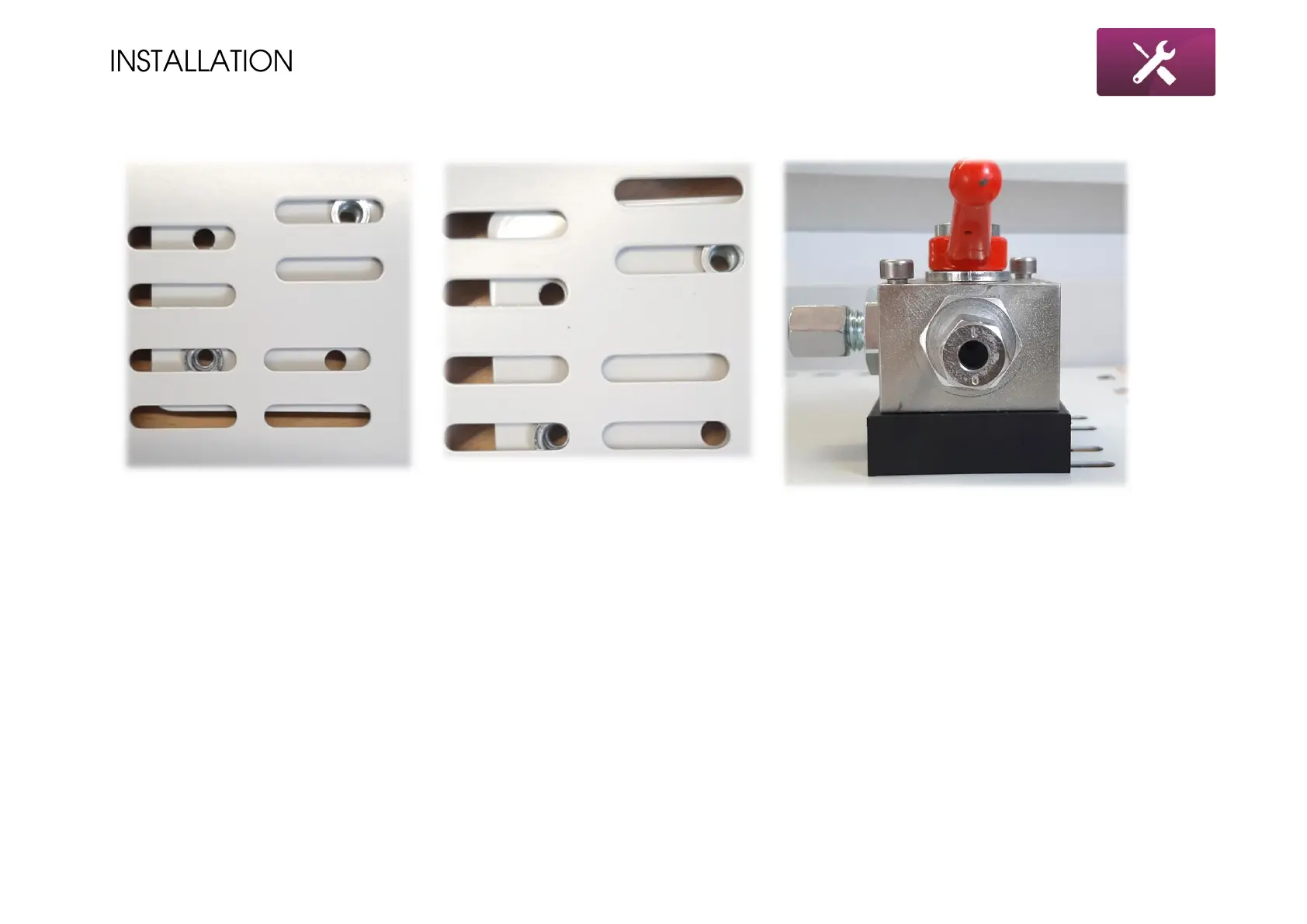

1. Prepare the mounting plate before installation on the pipe. Tighten the three way valve to the mounting plate using the spacer and
the small plate. Use proper holes for various types of device.
Setting of the small plate for
aluminium housing device
Setting of the small plate for
polycarbonate housing device
Holding the small plate using the hand tighten
preliminary the three way valve, putting a
spacer under it. Tighten it just to keep
together all the parts allowing for horizontal
movement of the valve.
