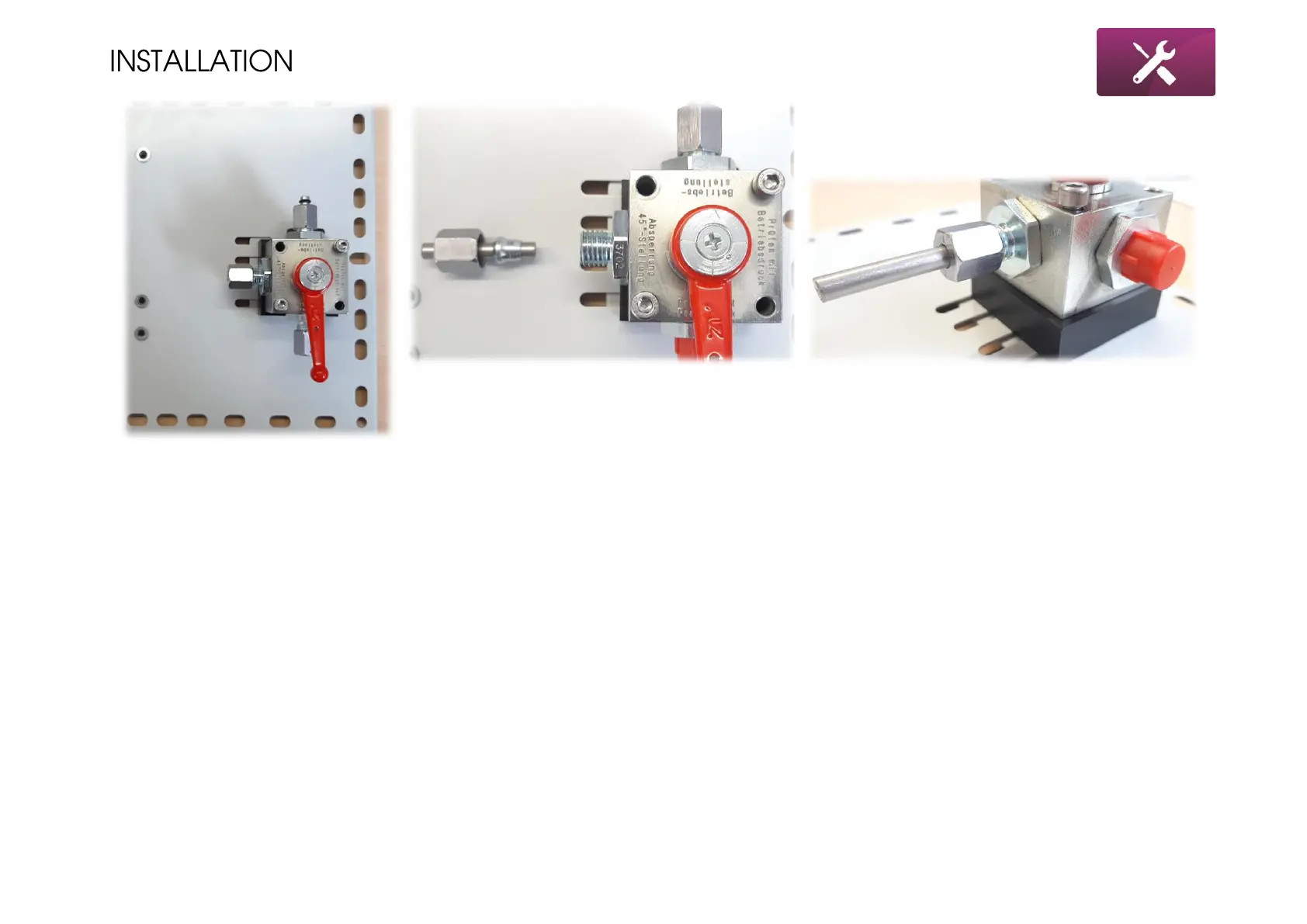

Remember to place the valve with
one port to be directed to the left
side of the plate.
Prepare the short edge of pipe, put inside the
cutting ring and the sealable nut.
Ultimate placing of the pipe should be as in the
picture above.
