F-14
MacBAT 5 – USER GUIDE. Version 1.0

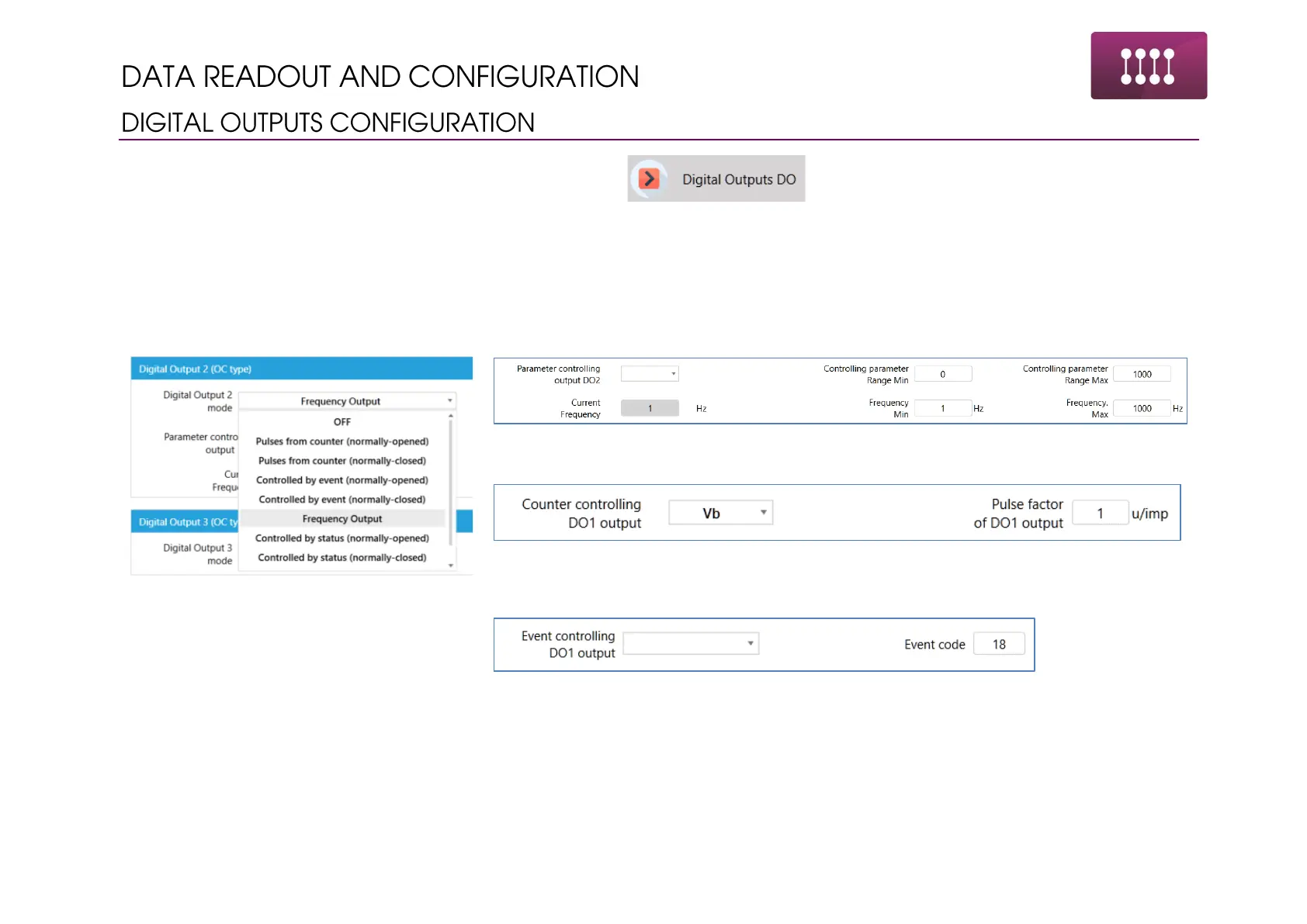

Changing the digital outputs configuration is available in section
To choose the mode of output click on Digital Output mode.
When choosing various option parameters related to the output mode.
Frequency mode - Parameters responsible for controlling the frequency value on the
output.
Counter mode – counters controlling the output to replicate pulses from.
Event mode – event code controlling the output to trigger the pulse. Event code choice
from the Data Structure document.
