Plum MacBAT 5 - External Modules Connection

C-19
MacBAT 5 – USER GUIDE. Version 1.0

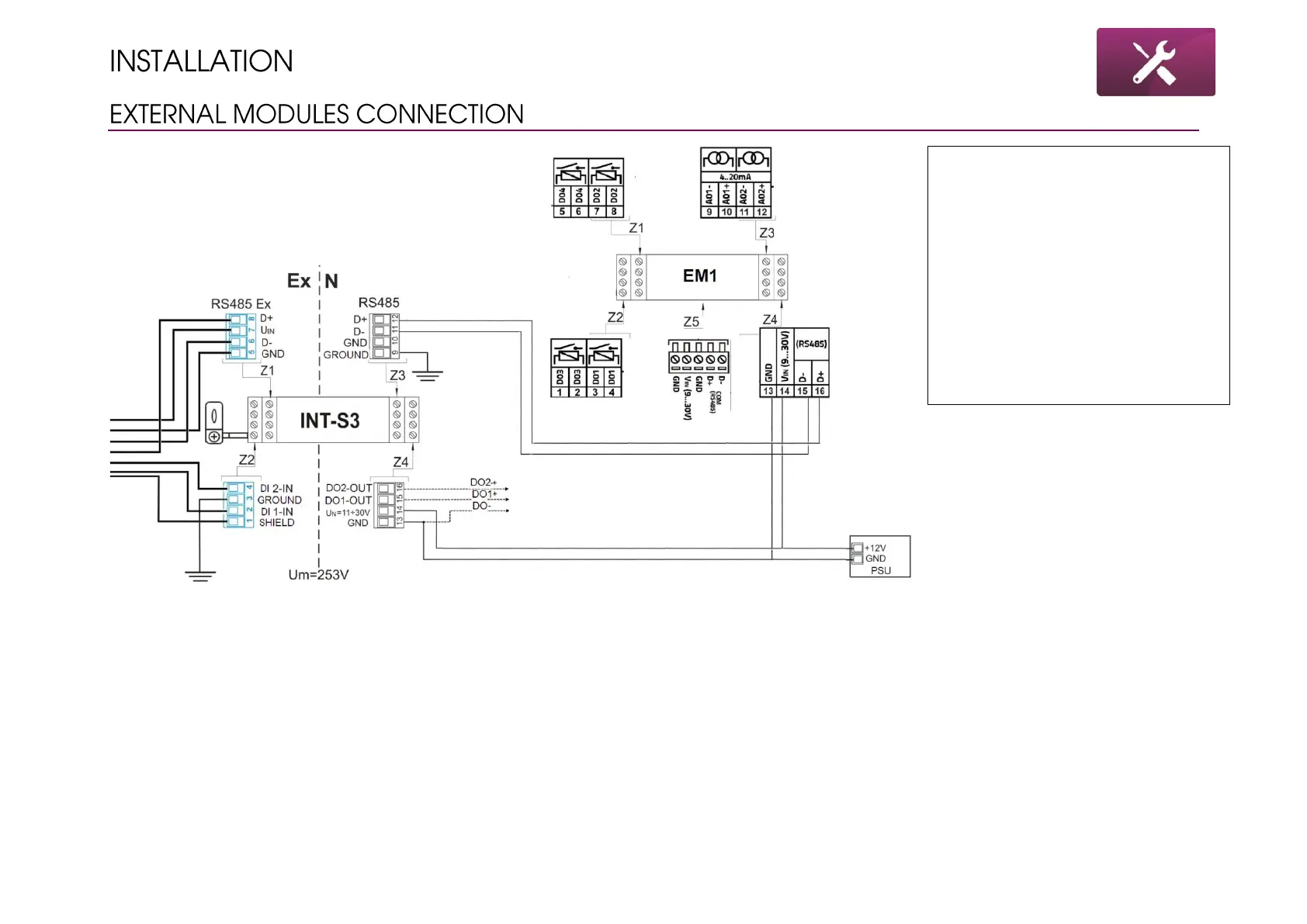

Example of connection External
Module 1 – additional relay and
current outputs – EM1.
EM1 is connected to INT-S3 safe
side.
INT-S3 in this moment is
transparent. MacBAT 5
communicates with module directly.
Z4 and Z5 connectors in EM1 are
connected.
