MacBAT 5 – USER GUIDE. Version 1.0

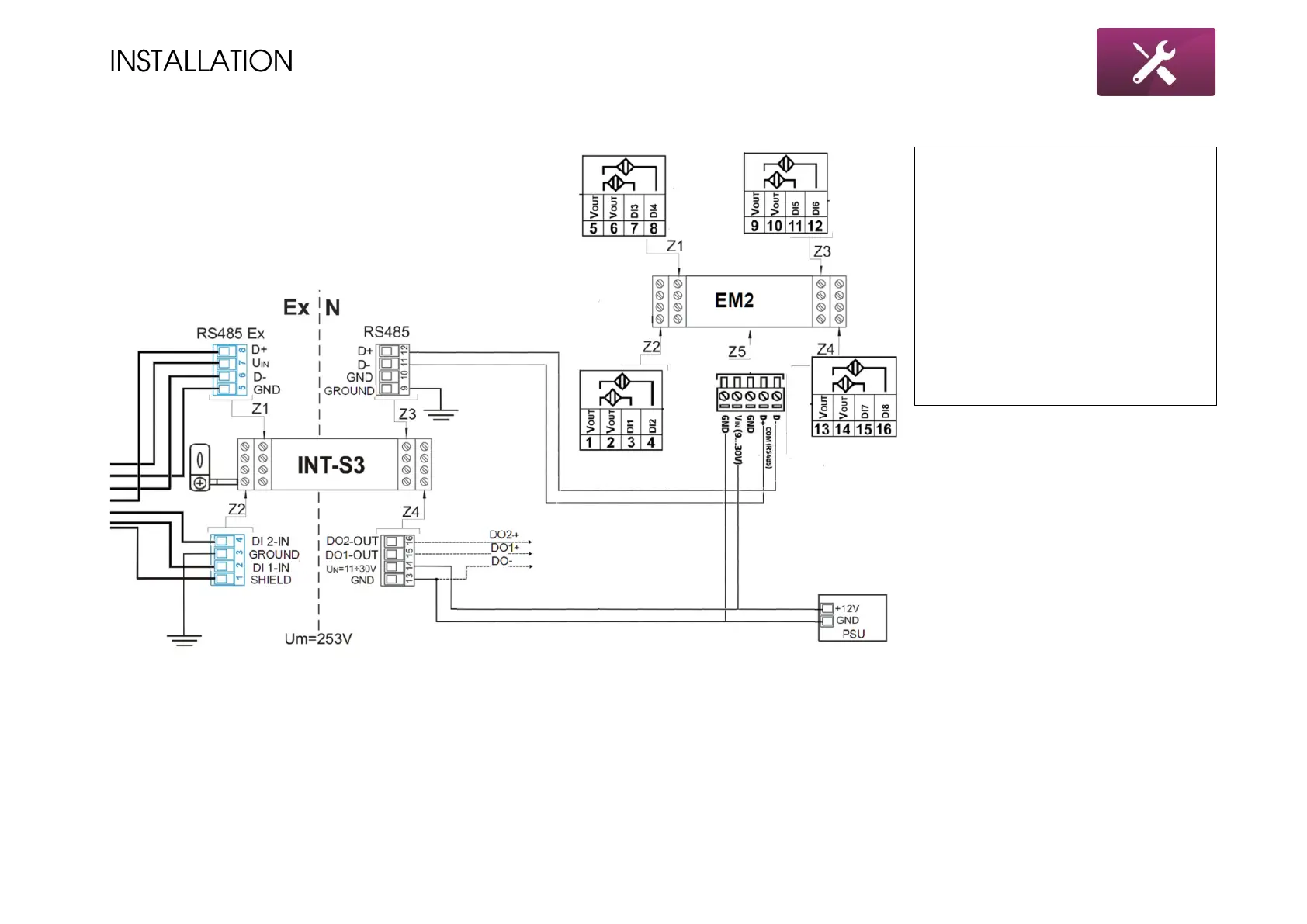

Connection of EM-2 extension module:
Example of connection External
Module 2 – additional NAMUR inputs
– EM2
EM2 is connected to INT-S3 safe
side.
INT-S3 in this moment is
transparent. MacBAT 5
communicates with module directly.
Connectors 1,2,5,6,9,10,13,14 are
internally connected.
