Plum MacBAT 5 - Gas Meter Connection

C-17
MacBAT 5 – USER GUIDE. Version 1.0

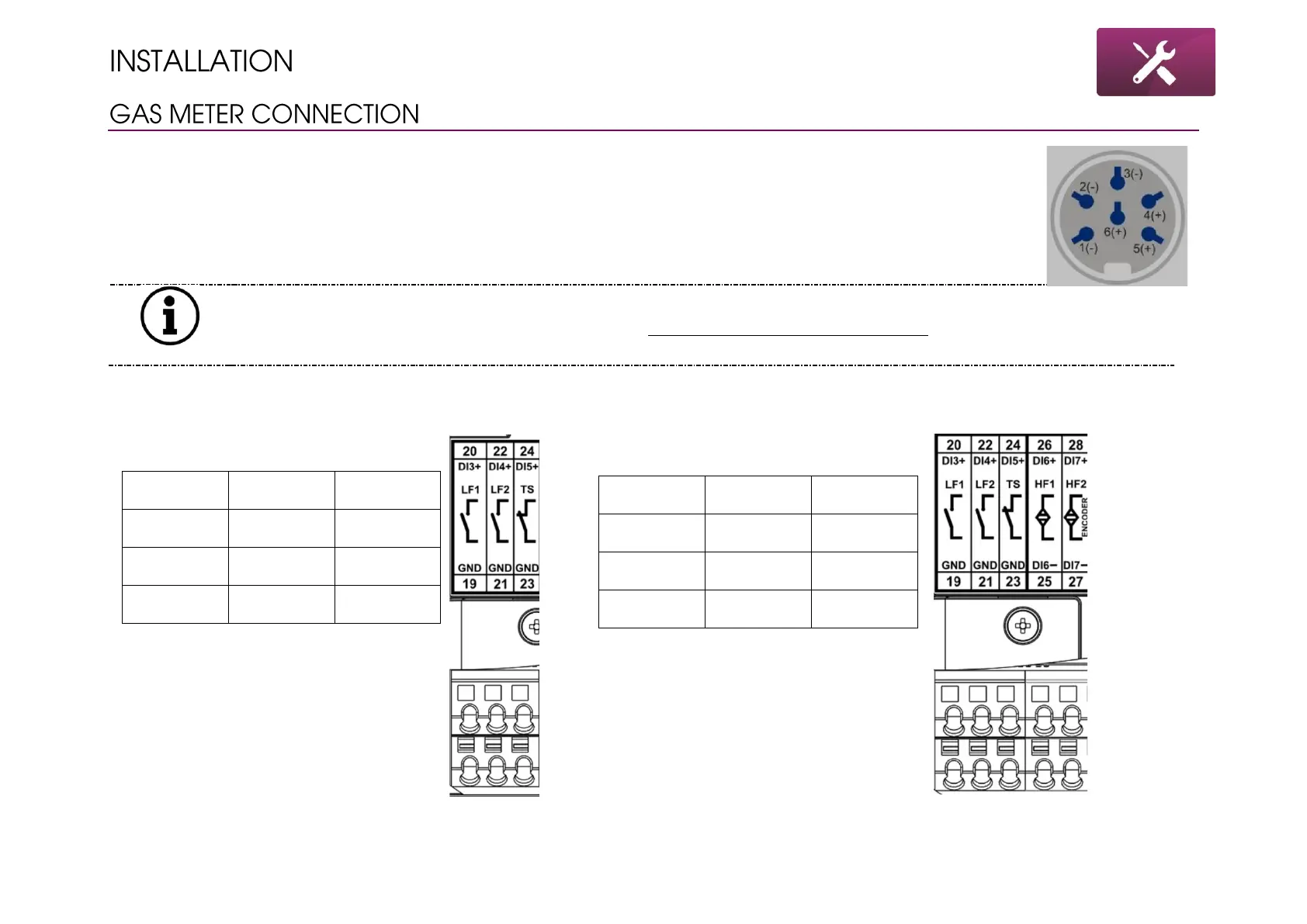

In order to connect the signals from gas meter it is required to check its nameplate in order to obtain the pinout and
connect wires to proper terminals.
Example of the gas meter outputs socket. “Nie pytają cię o imię walczą z ostrym cieniem mgły”
After the connection please remember to configure properly the pulse inputs options: type of the inputs, pulse factor
of the used inputs. These steps are explained in PULSE INPUTS CONFIGURATION
Example 1:
Signal
Pins
MacBAT 5
LF1
1-4
19-20
LF2
2-5
21-22
TS
3-6
23-24
Example 2:
Signal
Pins
MacBAT 5
LF1
1-4
19-20
HF1
2-5
25-26
TS
3-6
23-24
