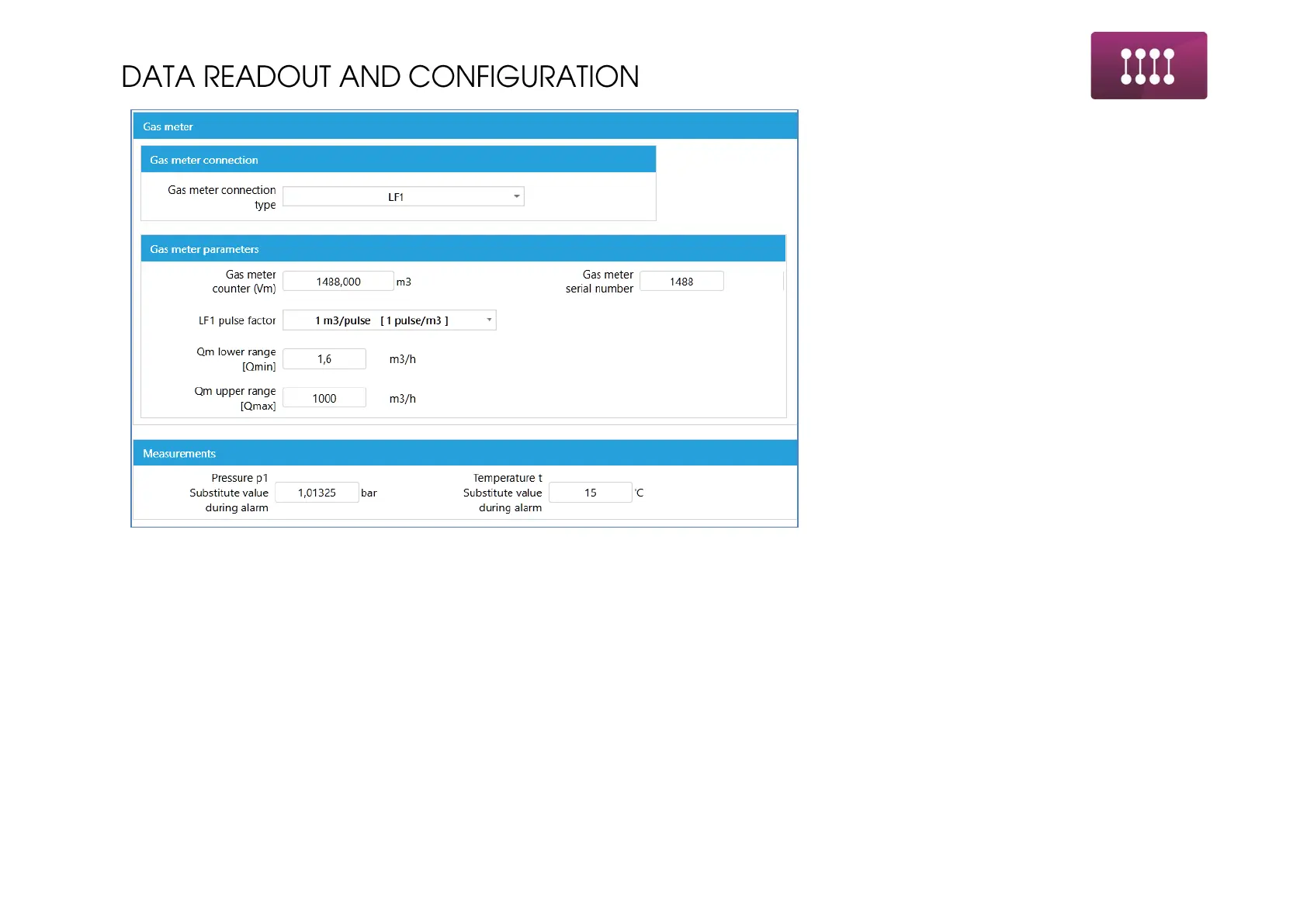

1. Gas meter connection type –
determination of the inputs type used for
collecting pulses from gas meter and
increasing Vm counter. Choose one
desired variant from the list
2. Gas meter parameters – obtained from
gas meter name plate. Depending on the
input type there are presented values
related only to this part, e.g. no
presented HF pulse factor, when LF1 is
chosen.
3. Substitute values – values taken for
calculations in alarm conditions.
Substitute pressure P1 is used for
variant temperature corrector as the
fixed value for PTZ conversion.
