CLUTCH
6.22

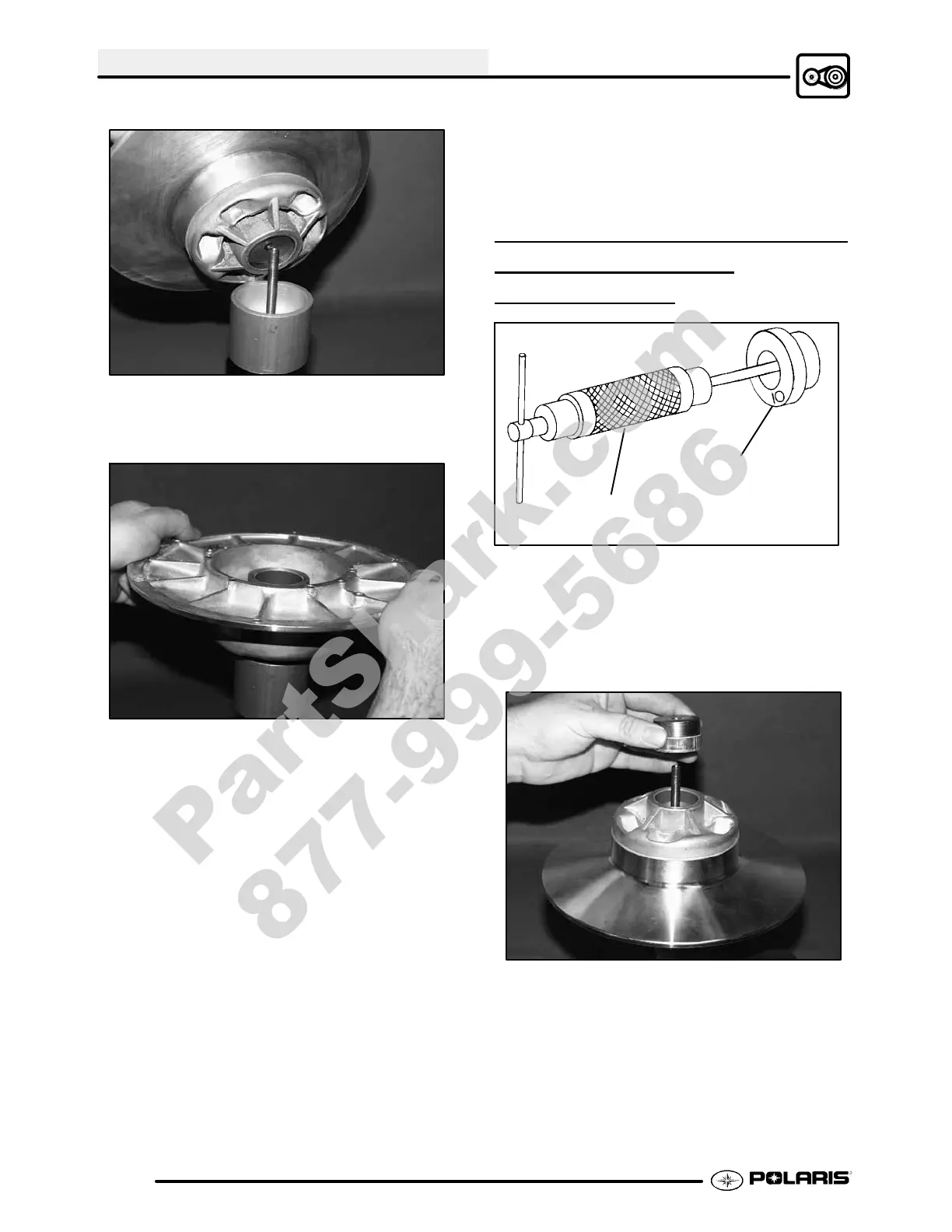

6. Install sheave onto puller.
7. Install nut onto puller rod and tighten by hand.
T urn puller barrel for further tension if needed.
8. Turn clutch sheave counterclockwise until
bushing is removed. Repeat Steps 5 - 8 for other
bushing.
9. Remove nut from puller rod and set aside.
10. Remove adapters from puller .
11. Removebushingandremovaltoolfromadapters.
Discard bushing.
DRIVEN CLUTCH MOVEABLE
SHEAVE -
BUSHING
INSTALLA
TION
Number Two Puller
Adapter (#10)
Piston Pin Pu lle r
(PN 2870386)
1. W orking from the top, insert Number Two Puller
Adapter (#10) (PN 5020633) onto the puller. See
illustration at above.
2. Start new bushing evenly in moveable sheave.
Apply Loctitet 680 (PN 2870584) to the back
side of new bushing.
3. Install sheave onto puller with new bushing
upward as shown. Install theNumber TwoPuller
Adapter (#10) (PN 5020633).
