Moving the Machine [Fitted with ‘860’ controls]
EN

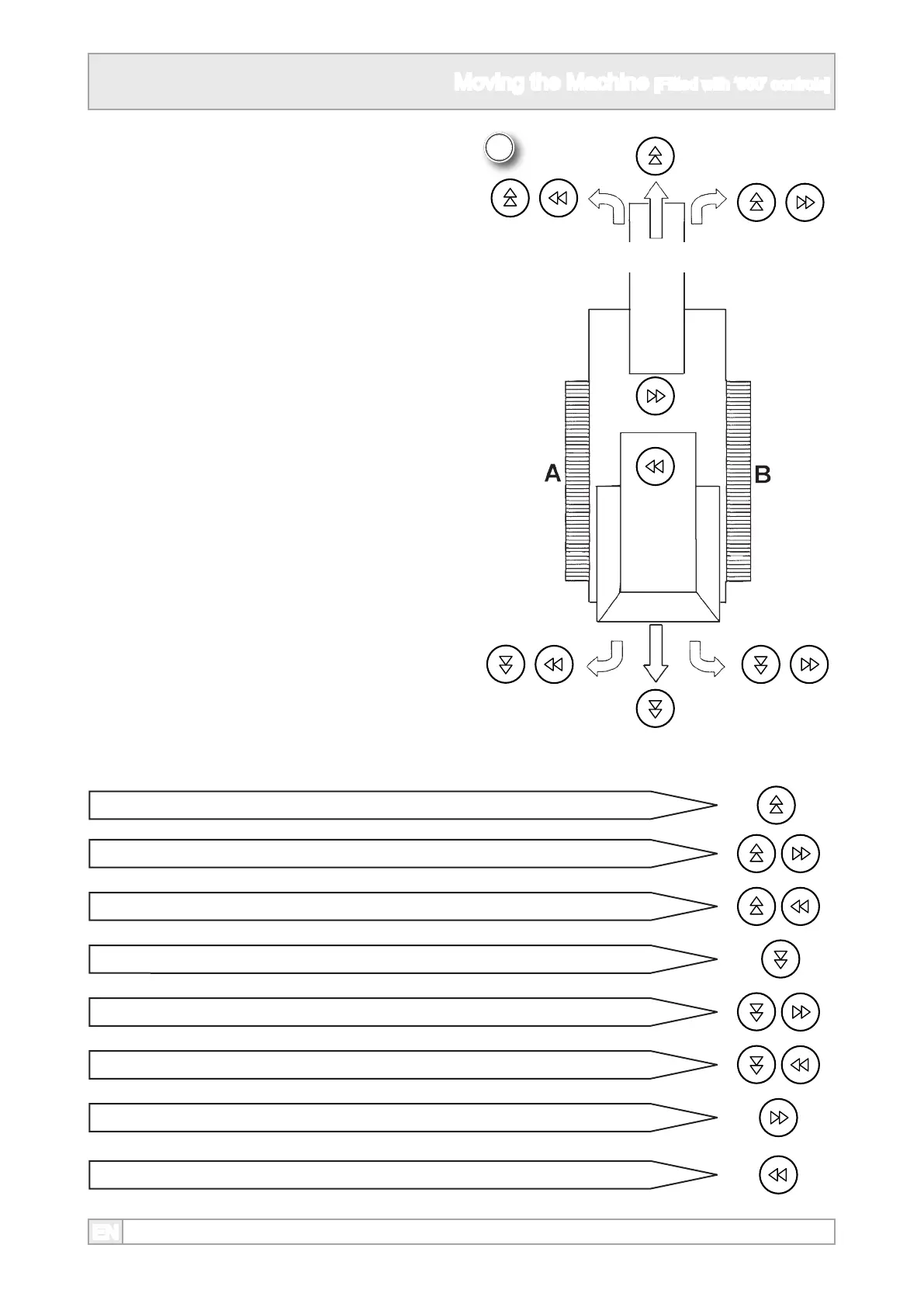

PLAN VIEW OF THE MACHINE
LEFT
FORWARD
RIGHT
LEFT
RIGHT
REVERSE
Forward slow 1 or fast 2 [tracks A & B forward]
Right turn slow [forward track A]
Left turn slow [forward track B]
Reverse slow 1 or fast 2 [tracks A & B reverse]
Right turn slow [reverse track A]
Left turn slow [reverse track B]
Rotate clockwise [track A forward & B reverse]
Rotate counter-clockwise [track A reverse & B forward]
16. Refer to direction control diagram.
17. The controls will stop operating if the track
control has not been used for a period of time.
18. The engine speed will vary with the use of the
track controls.
Reverse = Hopper rst
Forward = Product Conveyor rst
