60-1
Powerscreen® XA750S
1
3
5
6
EN

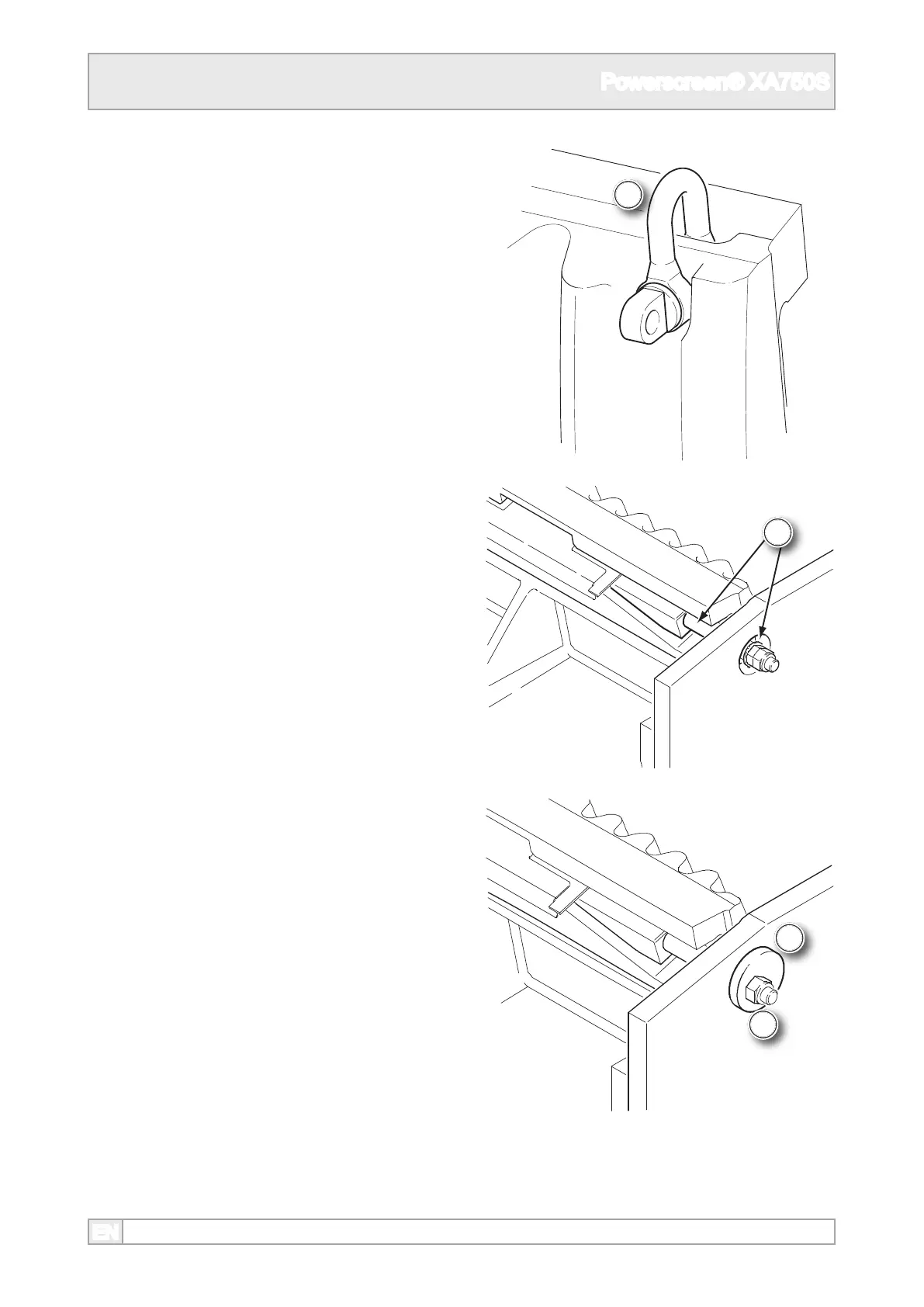

Fixed Jaw Removal
1. Fit suitable lifting shackles to the upper corners
of the jaw.
2. Fix suitable lifting equipment to the shackles and
support the weight of the jaw.
3. Remove the two nuts, washer and spacer tube
from the jaw clamping rod.
4. Remove the same items on the other side to
allow the clamping rod to move.
5. Take the extraction washer from toolbox and t it
and a nut to the jaw clamping rod.
6. Tighten the nut to pull the wedge outward with
the clamping rod.
7. Use the extraction washer on the other side to
release the other wedge. After use, place the
extraction washer in the toolbox to prevent loss.
8. With both wedges moved outward, the jaw can
be released at the upper and lower locations.
9. Lift the jaw up and clear.
To Next Page
