AM0011-3
4
4
Water Pump [if tted]
EN
4. If the higher capacity pump is tted, the supply
to the additional equipment can be taken o
one of the drain valves.
Servicing
5. No specic maintenance is required for the
pump unit except to check for hydraulic oil leaks
when carrying out the normal machine checks.

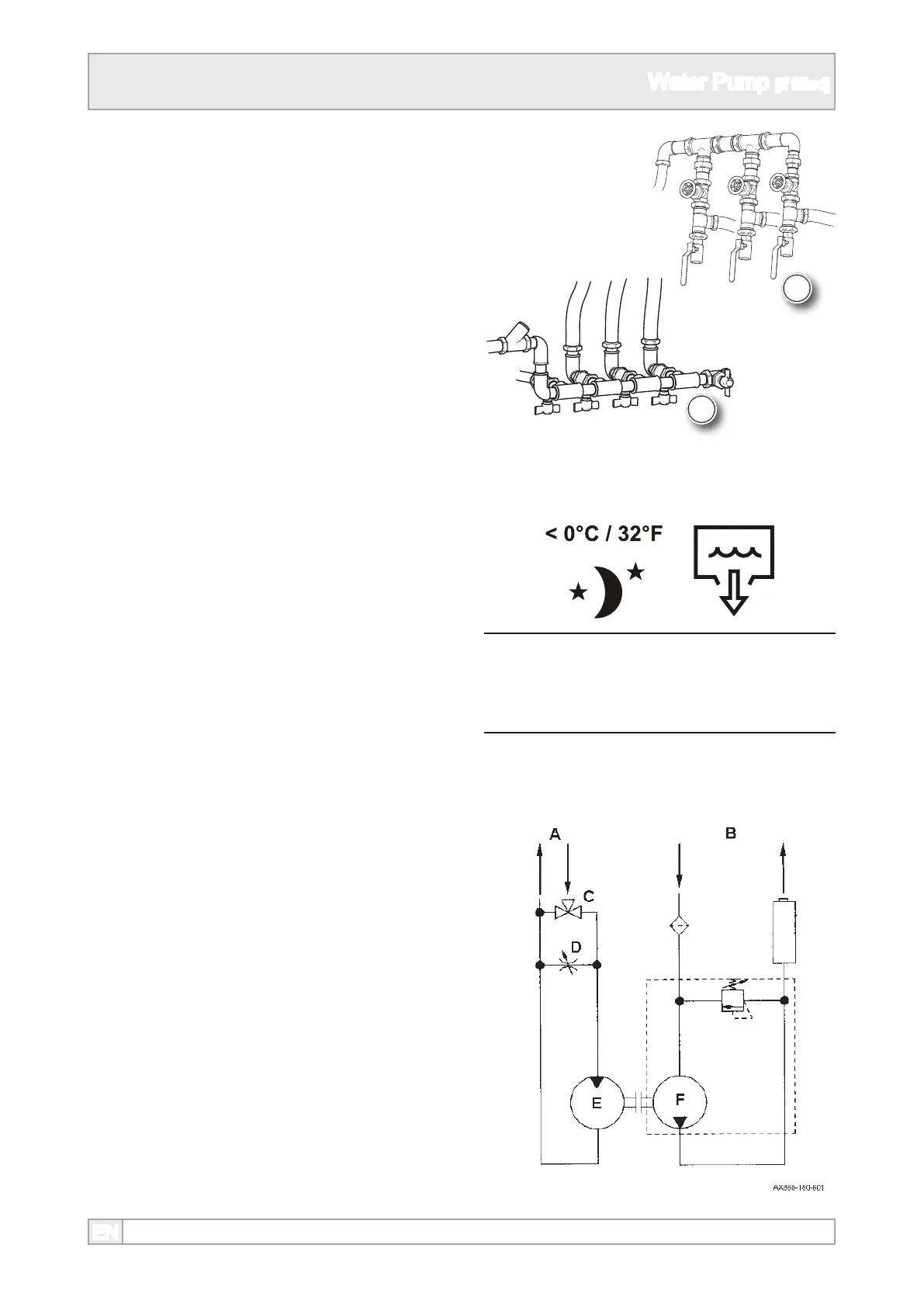

Pump Hydraulic and Water Circuits
Protection from Freezing
6. Precautions must be taken in cold weather to
ensure water does not freeze within the system,
by opening the water manifold drain valves and
draining the system.
7. Detach the pump water inlet feed pipe and any
additional equipment supply also.
NOTICE
Drain water from system when not in use,
if there is a possibility of freezing.
A. Hydraulic Fluid
B. Water
C. Three Position Valve
D. Flow Control Valve
E. Hydraulic Motor
F. Water Pump
