PP Systems CIRAS-2 User Manual

Familiarizing Yourself with the Measurement Display –
CIRAS-2 Operator's Manual Version 2.04
- 28 -
Graph Display Options
Plot Type Toggle
The graph can show either data plotted against time, or data plotted against data (maximum of two
variables). This button toggles between the Time Plot T and Data Plot D .
Current Y Axis Variable
While viewing the Time Plot the Y-Axis on the graph corresponds to the variable displayed on this button.
The border color of the button matches the plot color of the variable. Clicking on this button will toggle
through your (maximum of) four selected Time Plot variables.
See Graphing Preferences on page 57 for details.
Status Bar
Errors and Warnings
Click this button to view any recorded CIRAS-2 errors or warnings.
CIRAS-2 Status
Flashes various CIRAS-2 messages. If the E button is Green, it refers to CIRAS-2 Status Information. If
Red E, it refers to Error Information.
CIRAS-2 Mode
Refers to current functional mode of CIRAS-2 (e.g. Zero, Diff Bal, Data, etc.)

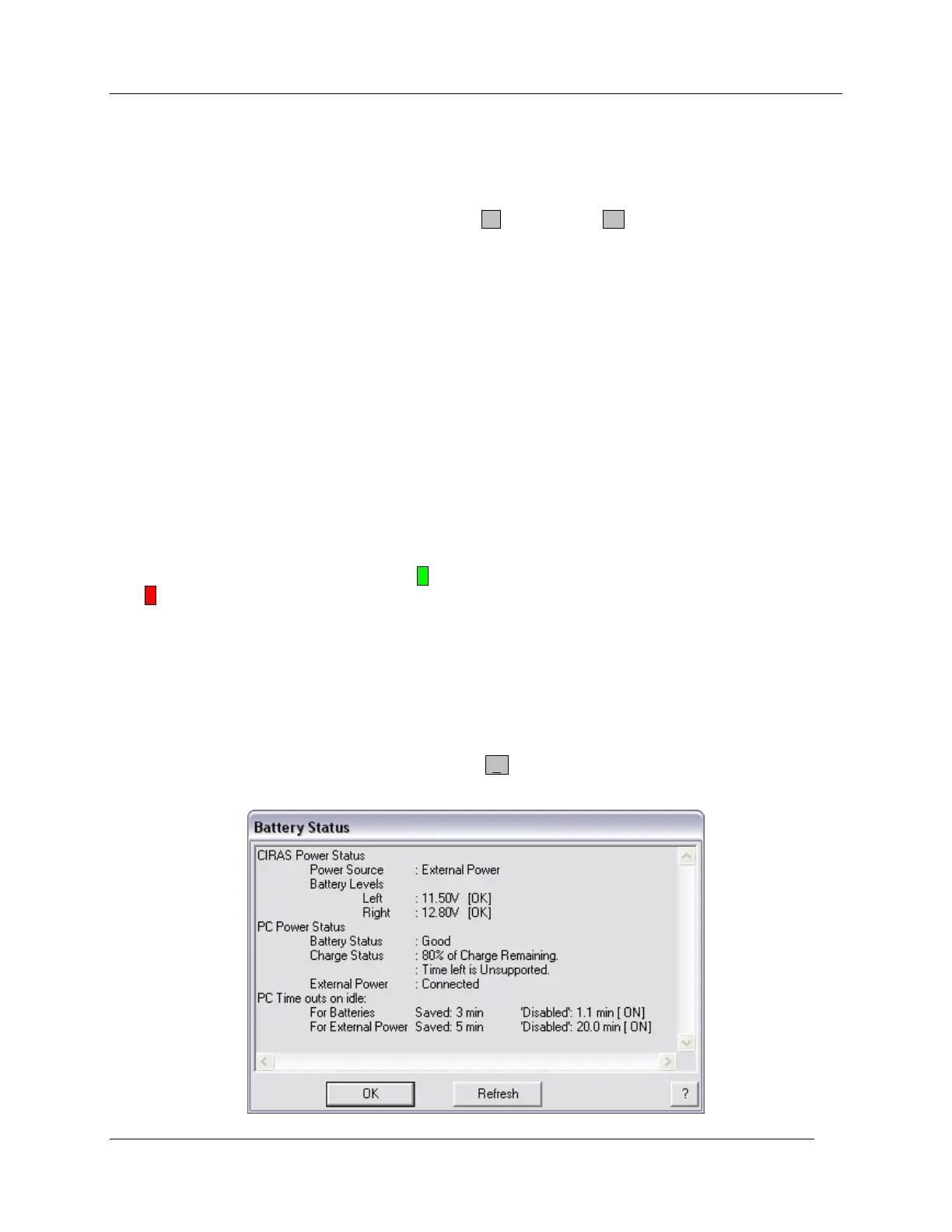

Power Status
Power Status of CIRAS-2 and PC. Clicking on the ? button displays a dialog with the status of the
CIRAS-2 batteries and PC (if connected).
