Schirmklemme

Basisbaugruppe

Sicherung

optional: Erweiterungsbaugruppe

Klemmenanordnung Ausführung Wandgerät

optional:

RC-Schutzbeschaltung

Schirmklemme

Anschluss des Koaxialkabels an die Schirmklemme

A2464

optional:

Kommunikatonsmodul

Messeingang

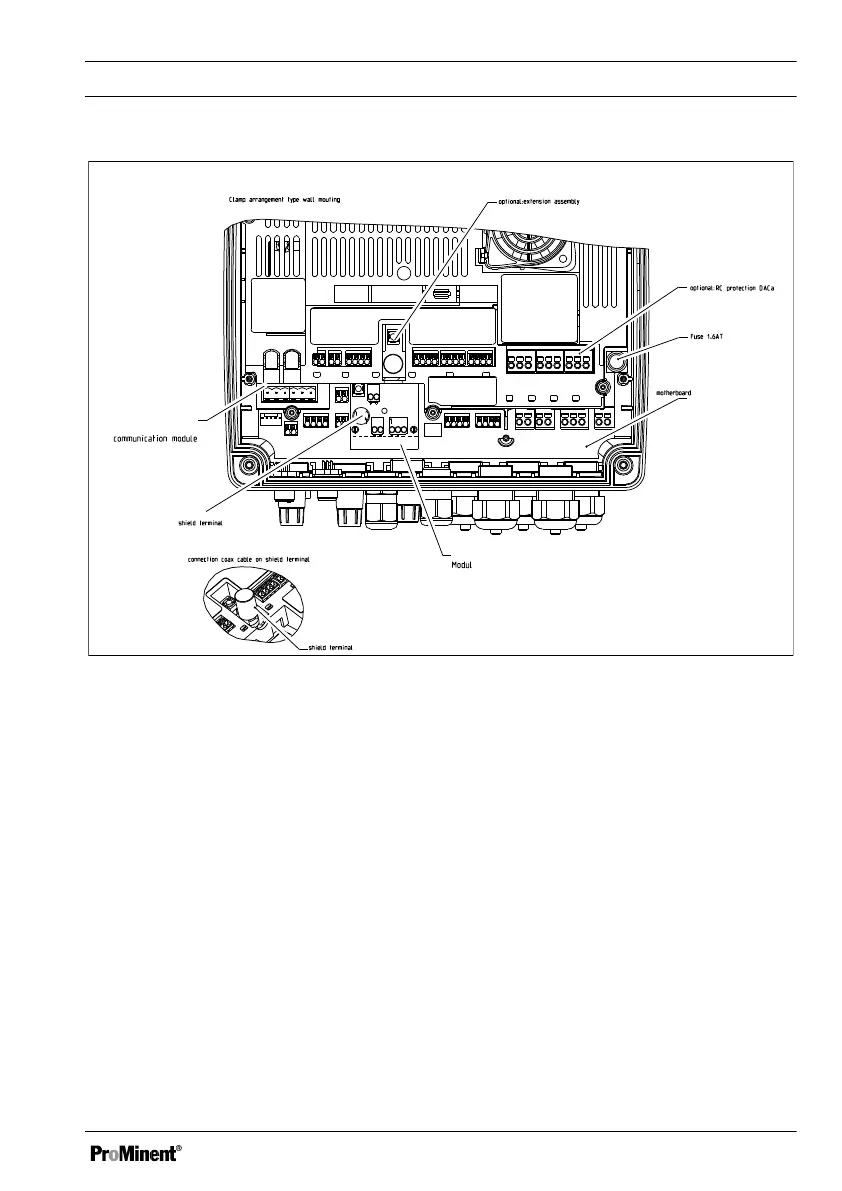

Fig. 15: Terminal layout

Assembly and installation

43
