Control line LiYY, 2 x 0.25 mm
2
, Ø 4 mm, part number 725122
mV interface:
n For the direct connection of pH and ORP sensors
n Maximum cable length: 10 m
Tab. 5: Sensor connection cable, coaxial, for terminal XE1/XE2
Description Part number
Cable combination, coaxial, Ø 5 mm 0.8 m - SN6 – pre-assembled. 1024105
Cable combination, coaxial, Ø 5 mm 2 m - SN6 – pre-assembled. 1024106
Cable combination, coaxial, Ø 5 mm 5 m - SN6 – pre-assembled. 1024107
7.3.2.2 Module: 2x mV inputs/temperature input. Part number 734131
A2413
40215017
mV-Eingang
Belegungsvarianten
Temperatur
Temperatur
Potenzialausgleich
SN6-Anschlussbuchse
Optional:
Drahtbrücke

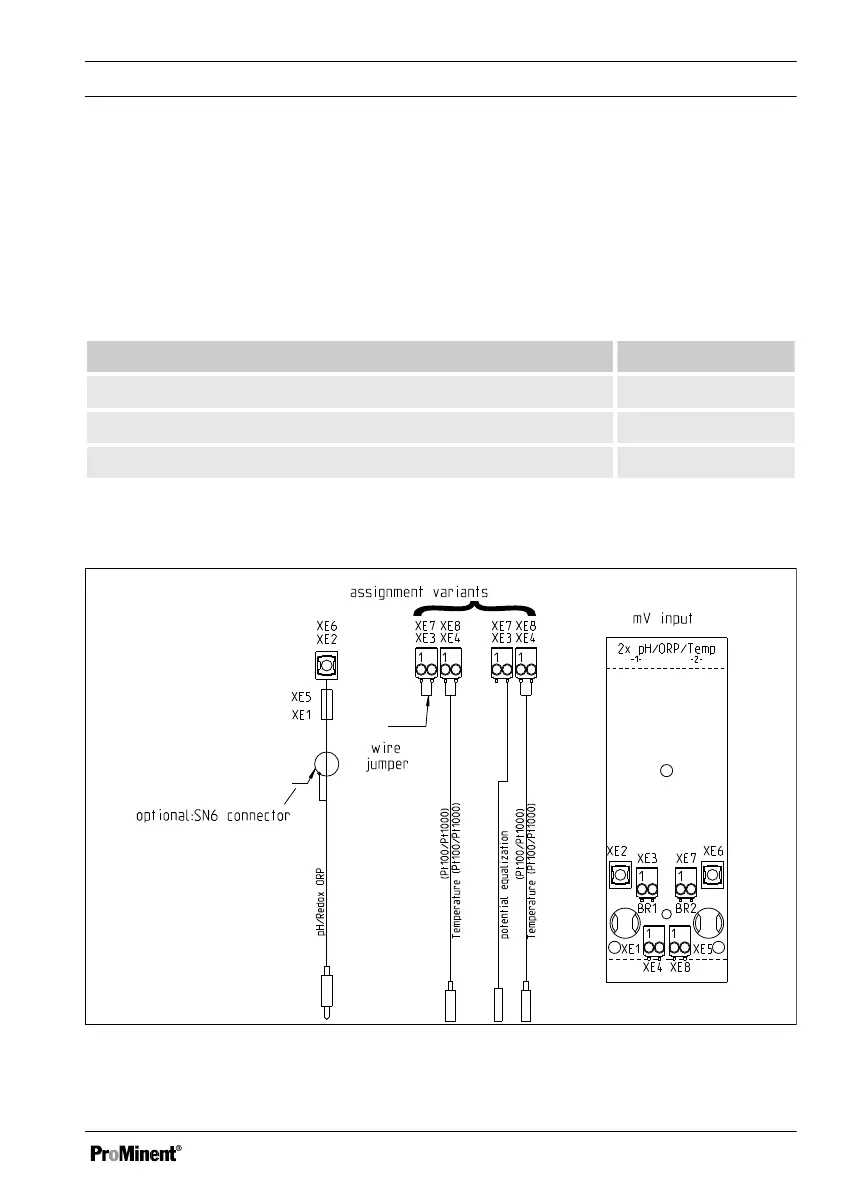

Fig. 22: Module: 2x mV inputs/temperature input. Part number 734131
