PLX32-EIP-MBTCP-UA ♦ Multi-Protocol Gateway OPC UA Server
User Manual
ProSoft Technology, Inc. Page 145 of 156
March 8, 2018

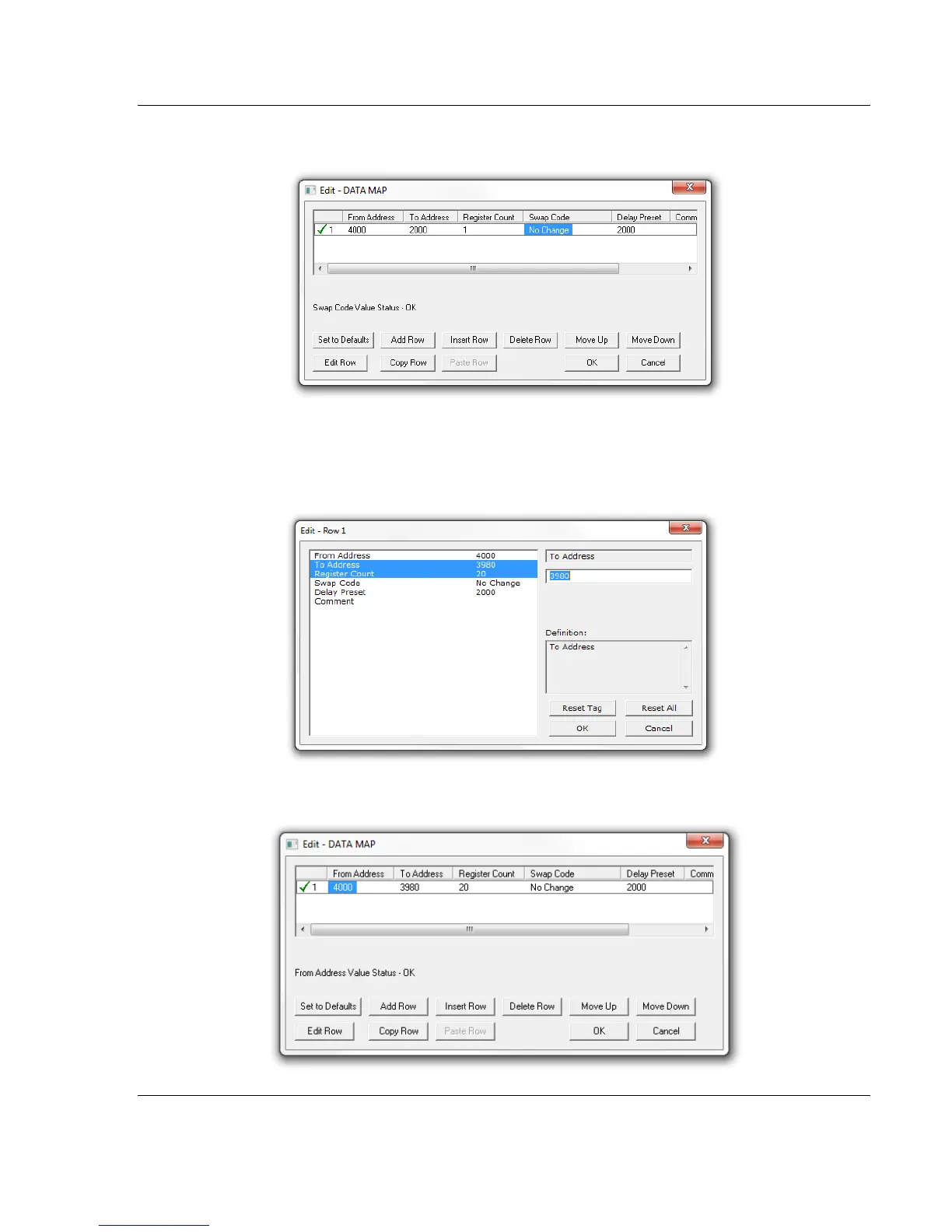

4 The first row populates with a default data mapping. Double-click on this
row to edit it.
5 In the Edit – Row 1 dialog box, edit the To Address parameter to ‘3980‘
and the Register Count parameter to ‘20’.
The PLX32-EIP-MBTCP-UA status data is located at gateway memory
4000 to 4019. The DATA MAP feature copies these 20 registers down to
3980 to 3999. This is where the UA Client will read from.
6 Click the OK button.
7 The mapping updates in the Edit – DATA MAP dialog box. Click OK.
