OPC UA Server PLX32-EIP-MBTCP-UA ♦ Multi-Protocol Gateway
User Manual
Page 144 of 156 ProSoft Technology, Inc.
March 8, 2018
7.11 UA Client Connectivity
The following example shows how the UA Client can read data from the
gateway’s UA Server.
7.11.1 Data Map Example
1 In this example, you will map the live data into the gateway’s user data
range (0 to 3999). The mapped data includes the Revision Number and
Program Cycle Counter of the PLX32-EIP-MBTCP-UA. The DATA MAP
feature in PCB accomplishes this.

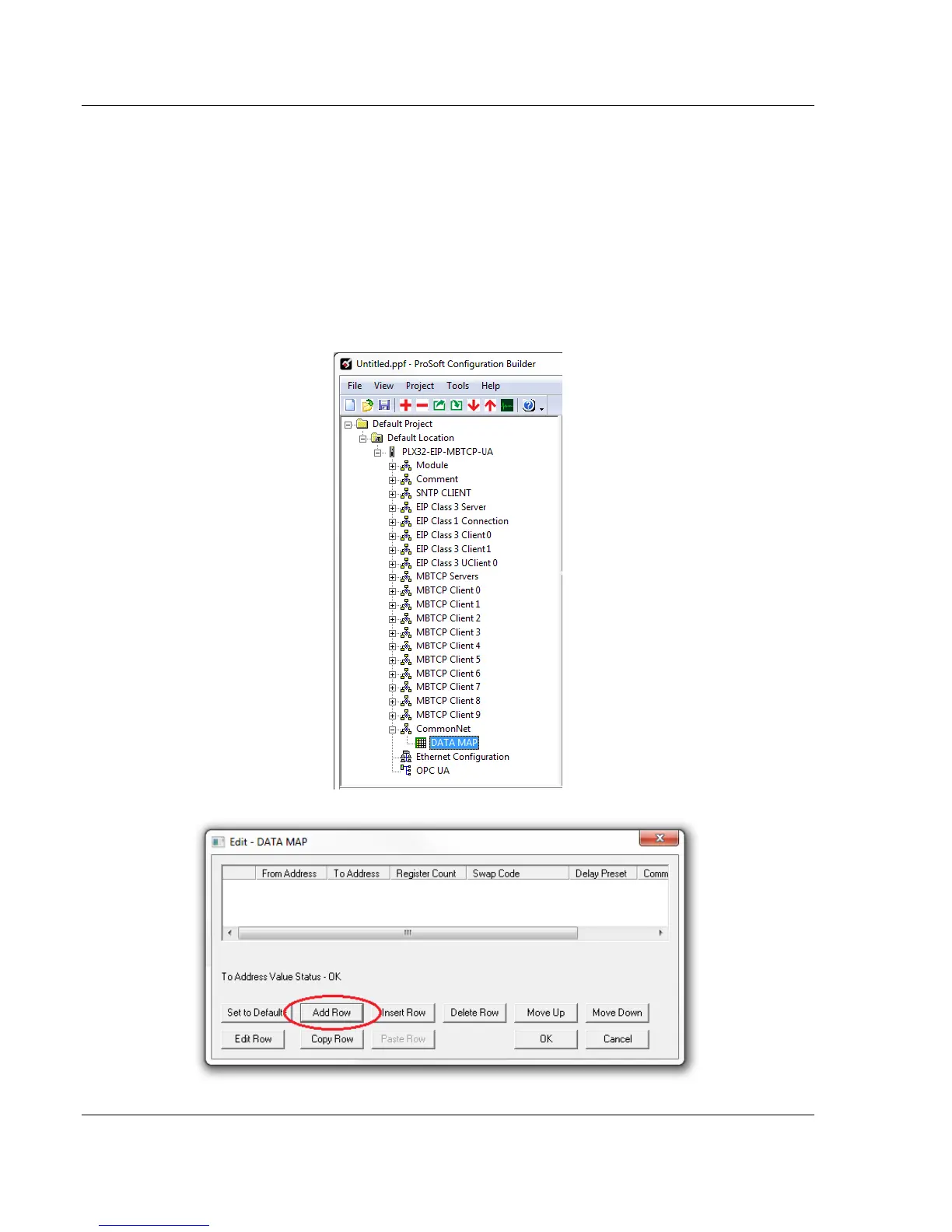

2 In PCB, double-click on the DATA MAP icon.
3 The Edit – DATA MAP dialog box opens. Click on the ADD ROW button.
