PLX32-EIP-MBTCP-UA ♦ Multi-Protocol Gateway EIP Protocol
User Manual
ProSoft Technology, Inc. Page 41 of 156
March 8, 2018
5 EIP Protocol
5.1 EIP Functional Overview
You can use the PLX32-EIP-MBTCP-UA to interface many different protocols
into the Rockwell Automation family of processors, or other software-based
solutions.

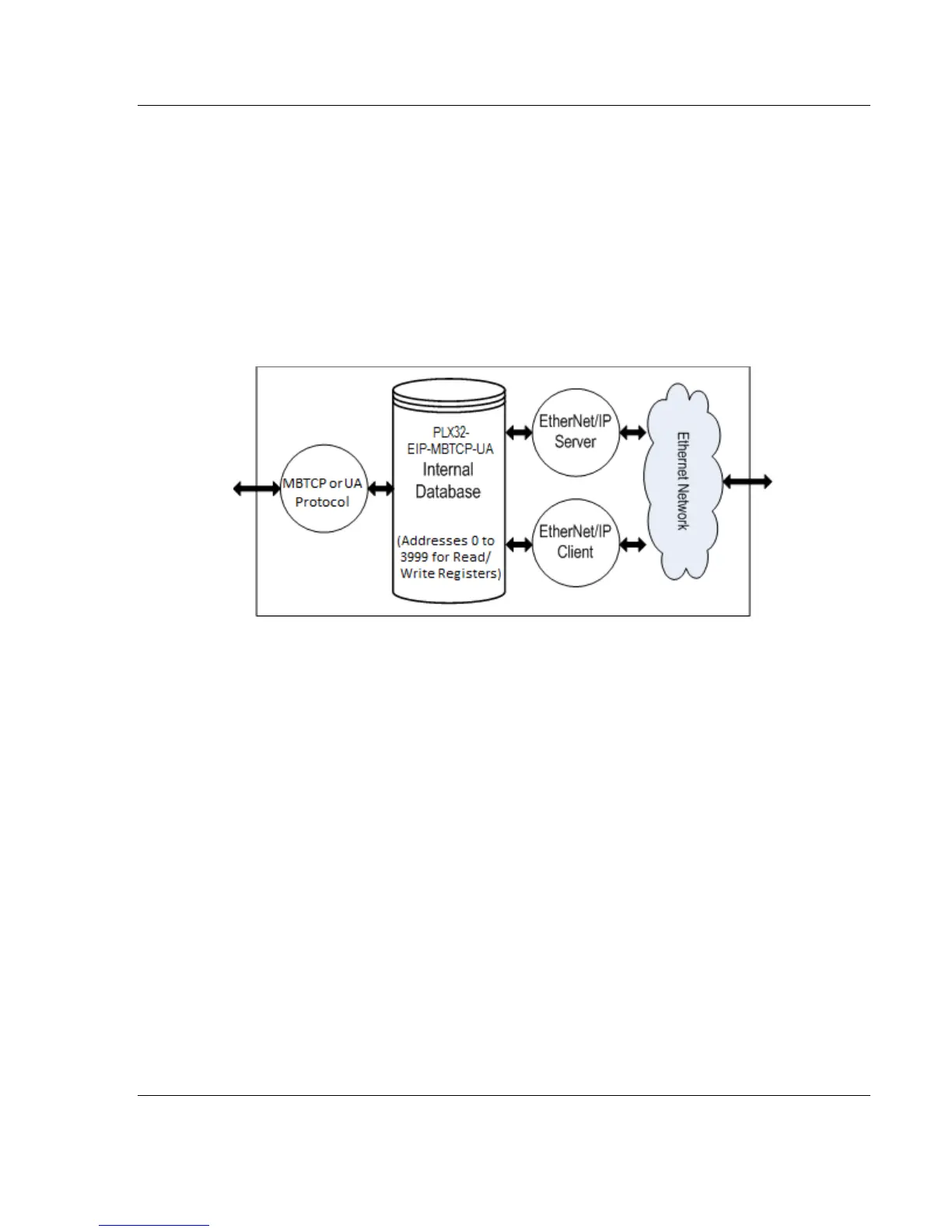

The following illustration shows the functionality of the EtherNet/IP protocol.
