Руководство пользователя
6. RAID Setting Instructions 197
www.qtech.ru
6.2.7 Clear disk RAID information:
This function is used to clear the residual RAID information in the disk, so that the disk
can be reused to configure RAID. This function is often used for disks whose mode is
Unconfigured Bad.
1. Switch the disk mode Unconfigured Bad to Unconfigured Good.
2. As shown in Figure 6-101, select Configuration Management on the RAID card
configuration interface, and press Enter.

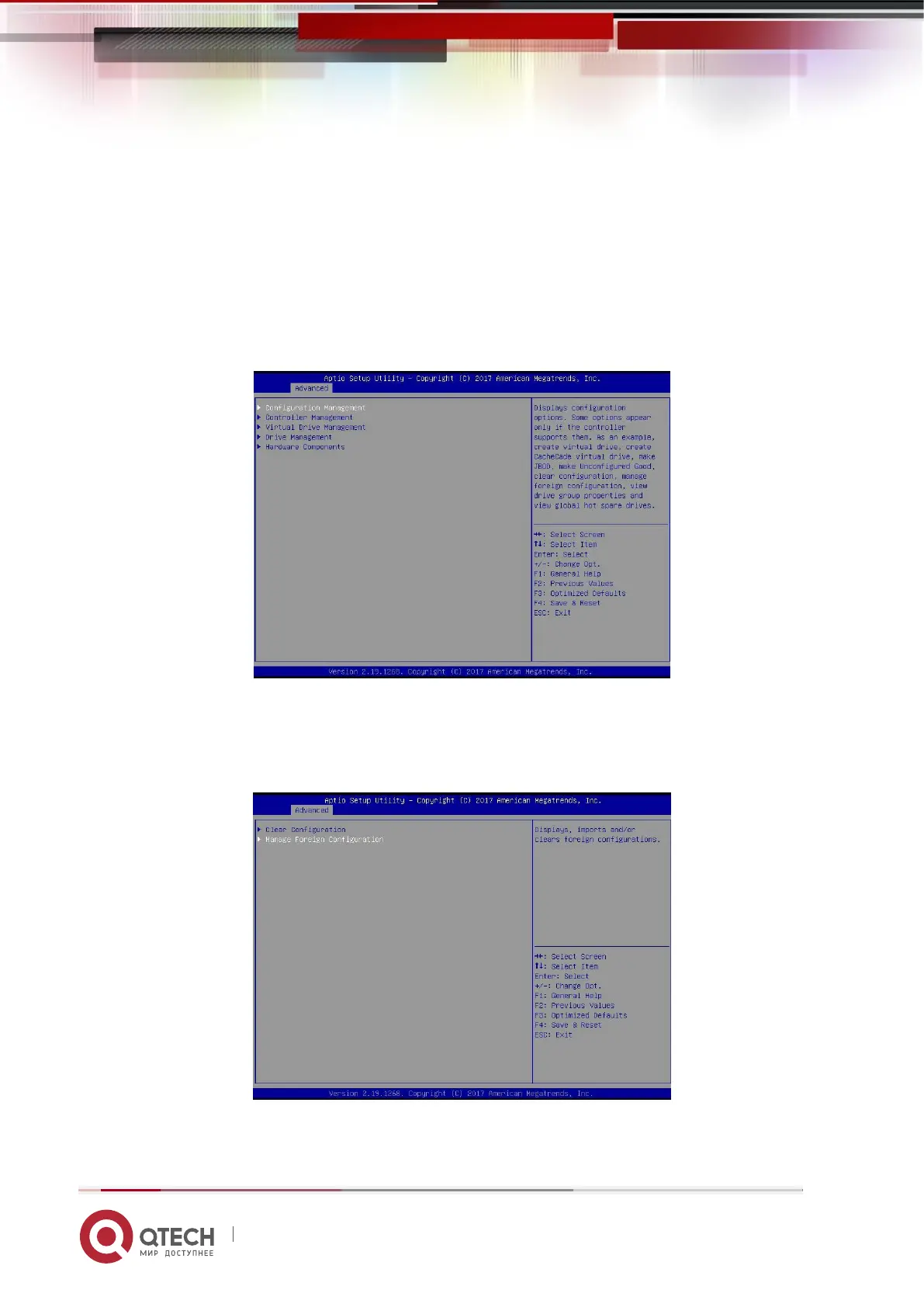

Figure 6-101 RAID card configuration interface
Figure 6-101
3. Enter the interface shown in Figure 6-102, select Manage Foreign Configuration,
and press Enter.
Figure 6-102 Select Manage Foreign Configuration
Figure 6- 47
