3.4 Hard disk installation
❖ Install 3.5 inch hard disk:
1. Place the hard drive in the tray
2. There are a total of 4 countersunk screws on the left and right sides to lock the hard
drive (the screw heads must not protrude from the surface of the slide rails on both
sides of the tray)

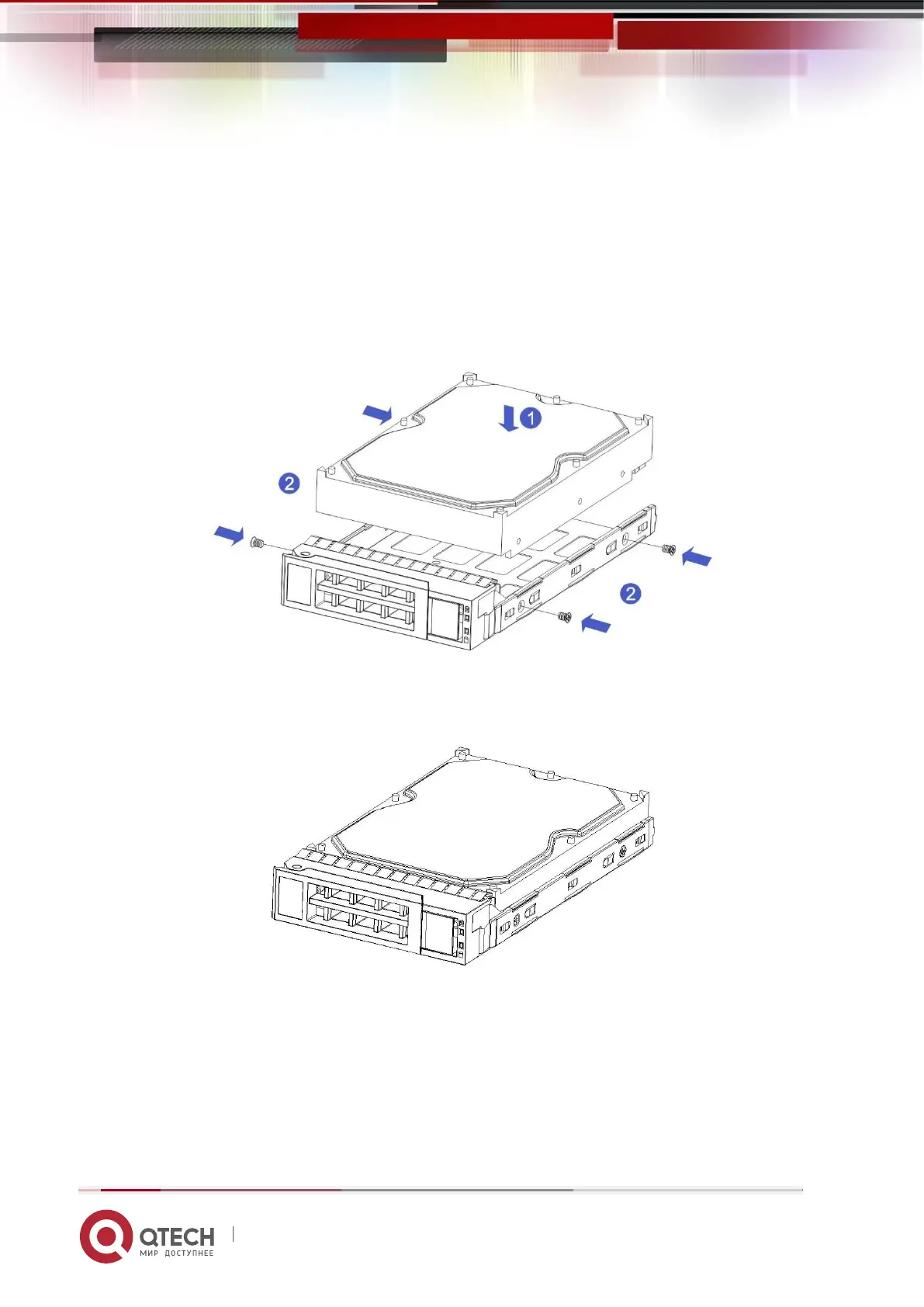

Figure 3-8
Figure 3-9
❖ Install 2.5 inch hard drive
1. Place the hard drive in the tray
2. 4 countersunk screws at the bottom to lock the hard drive (the screw heads protrude
from the bottom of the tray)
