Руководство пользователя
3. Installing System Components 55
www.qtech.ru

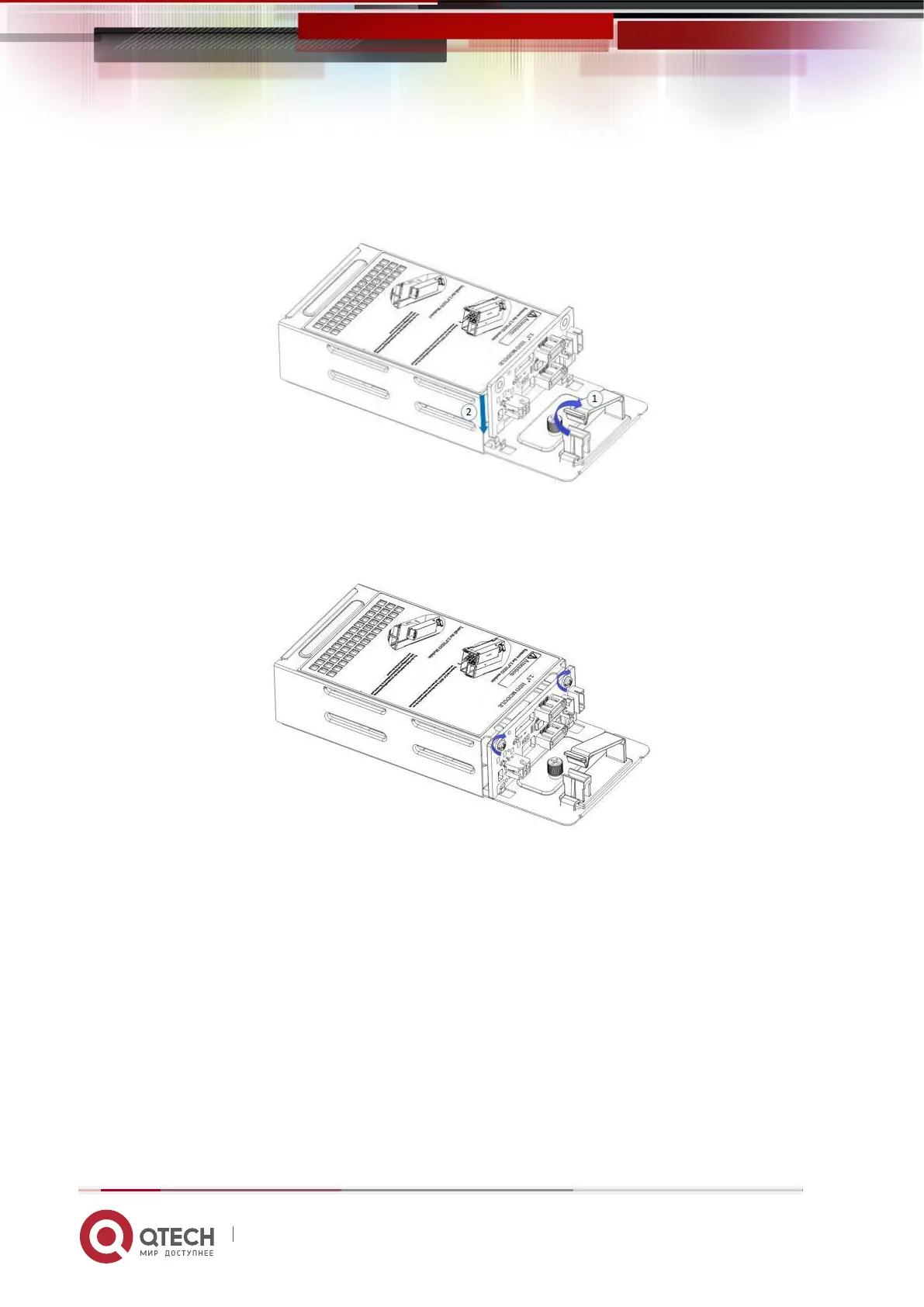

3. Turn over the fixing parts on the hard disk backplane, as shown in the figure-the
fixing parts can be placed flat.
Figure 3-21
Figure 3-22
3.9 Rear hard disk module installation
❖ Rear 3.5 inch HDD tray installation
Step 1. Place the HDD tray vertically downward and flush with the rear window
Step 2. Fix the rear HDD tray component
Step 3. Lock a captive screw
