Руководство пользователя
3. Installing System Components 56
www.qtech.ru

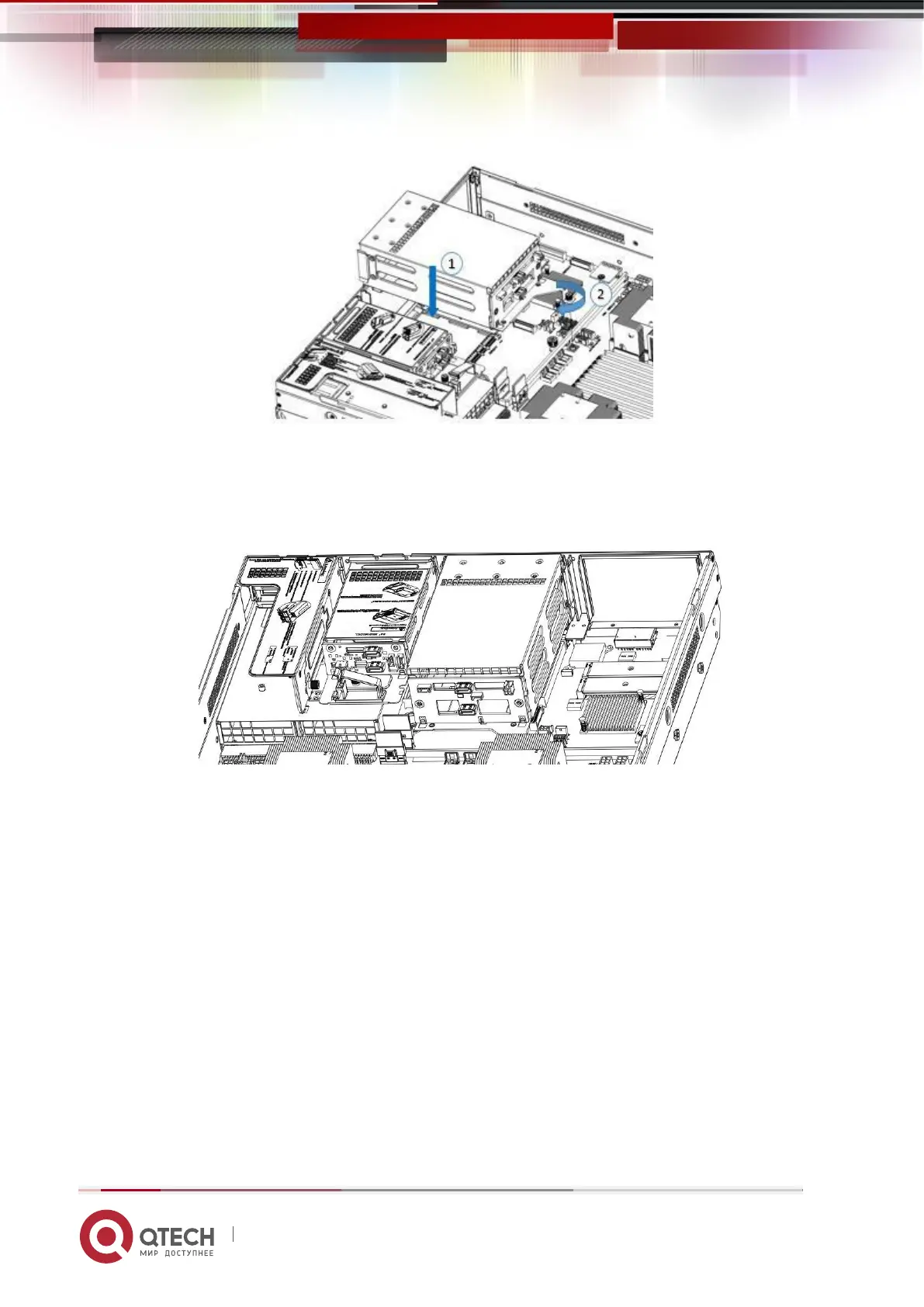

Figure 3-23
Figure 3-24
❖ Rear 2.5 inch HDD tray installation
1. Place vertically downward, aiming at the guide pin at the lower end
2. After placing it flat, push it to the end in the direction of the arrow,
3. Lock the captive screws
