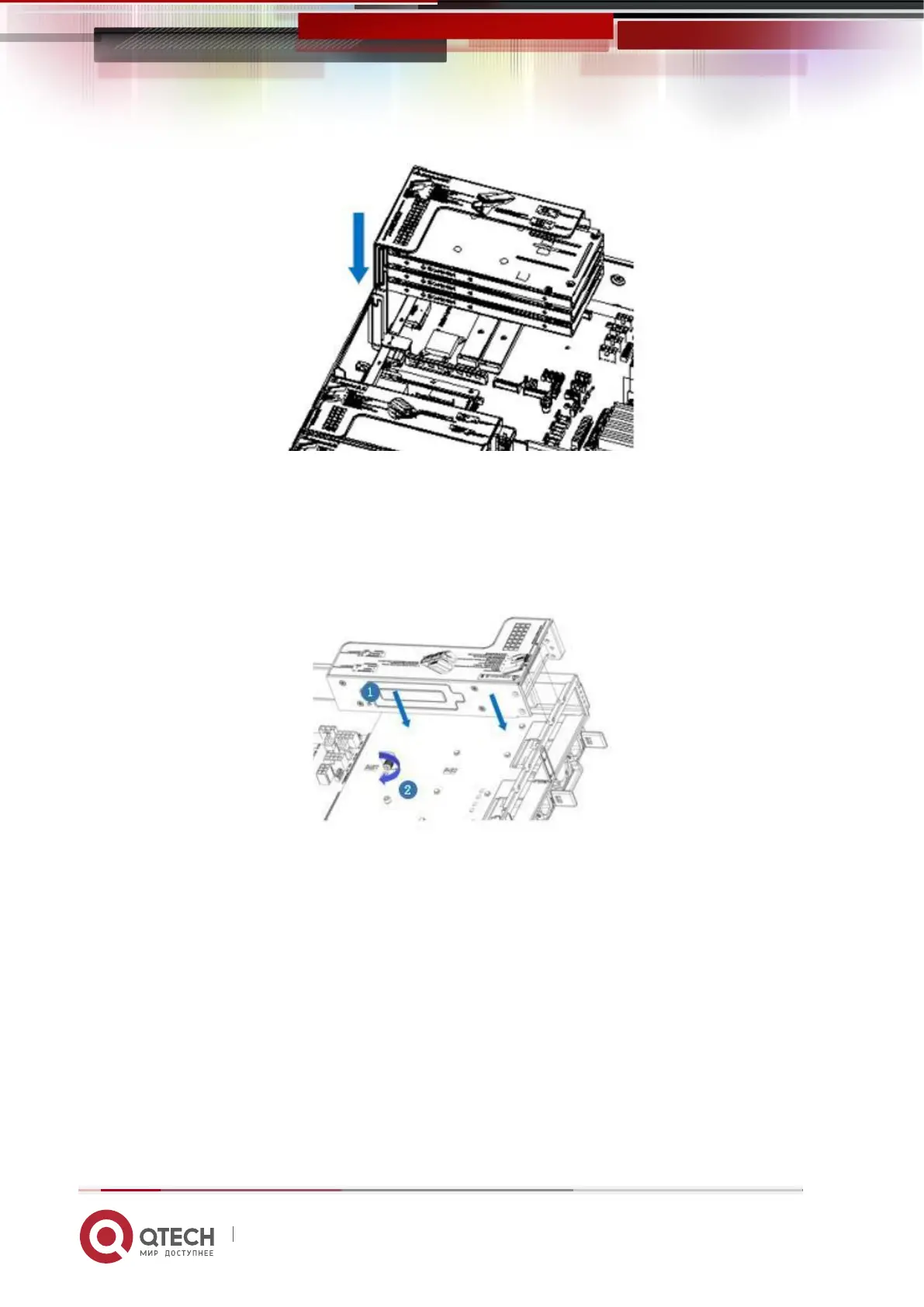

Figure 3-19
Riser4 module installation steps: rear window PCIE components, placed vertically
downward-align the PCIE slot, align the positioning holes, place it flush with the rear
window, and then tighten the side screws.
Figure 3-20
3.8 Rear hard disk module backplane installation
Step 1: Install the rear hard disk module backplane
1. Pull the back plate limiting shrapnel outward with your hand, and hold the shrapnel
with your hand-keep the shrapnel open
2. Align the nail holes of the hard disk backplane with the nails of the hard disk module
bracket and push it forward, and then place it down in place, release the hard disk
limit shrapnel, and the shrapnel automatically springs back to the original position;
To Next Page
