3.2 Radiator installation
❖ installation steps:

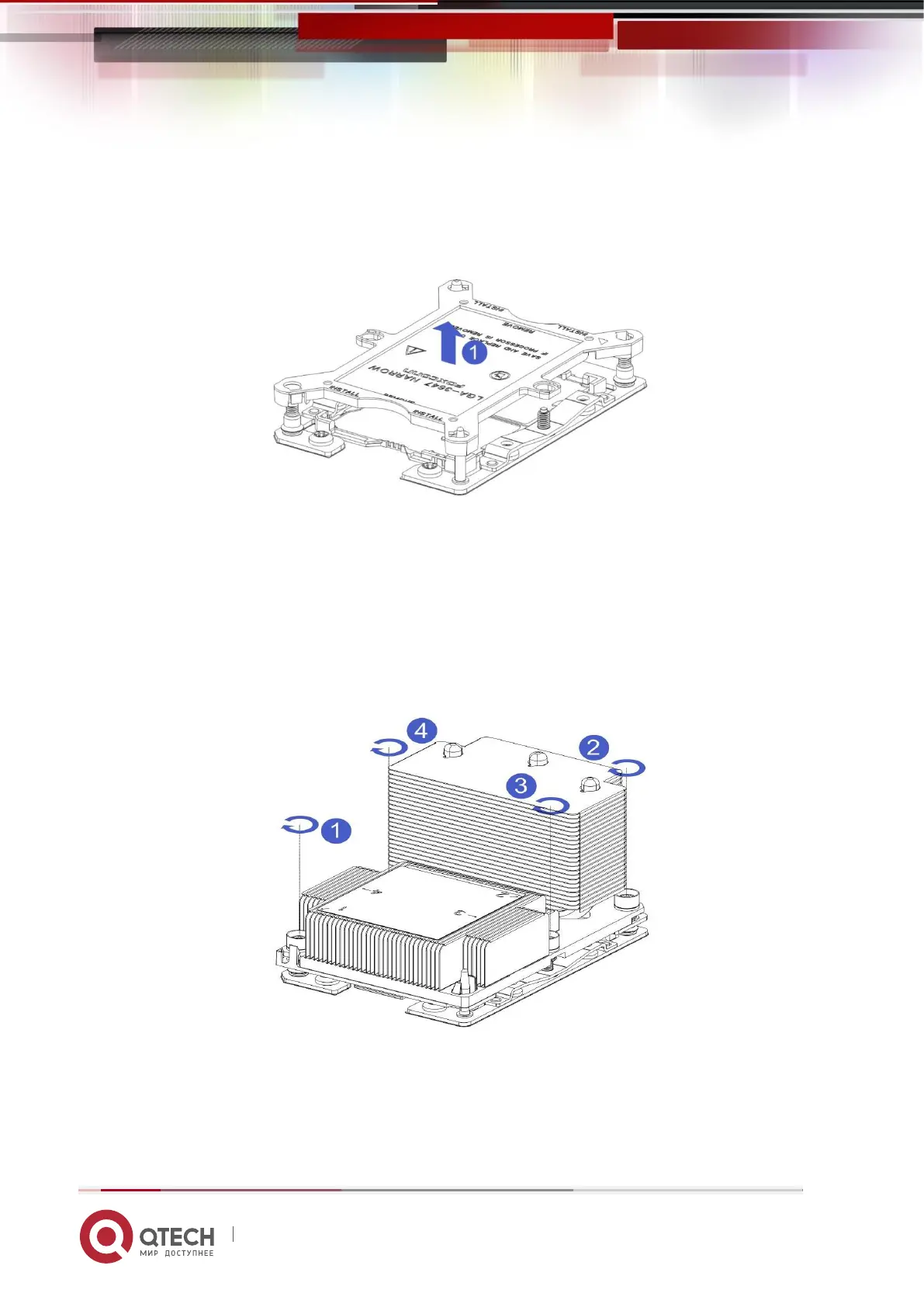

1. Remove the processor blank (as shown below)
Figure 3-3
2. Align the heat sink with the heat sink fixing studs on the CPU base, and tighten the
fixing screws of the heat sink in sequence according to the instructions. (As shown
below)
Note: The pins on the motherboard are extremely fragile and easily damaged. To avoid
damage to the motherboard, do not touch the processor or processor socket contacts.
Figure 3-4
3.3 Memory installation
