Руководство пользователя
3. Installing System Components 62
www.qtech.ru

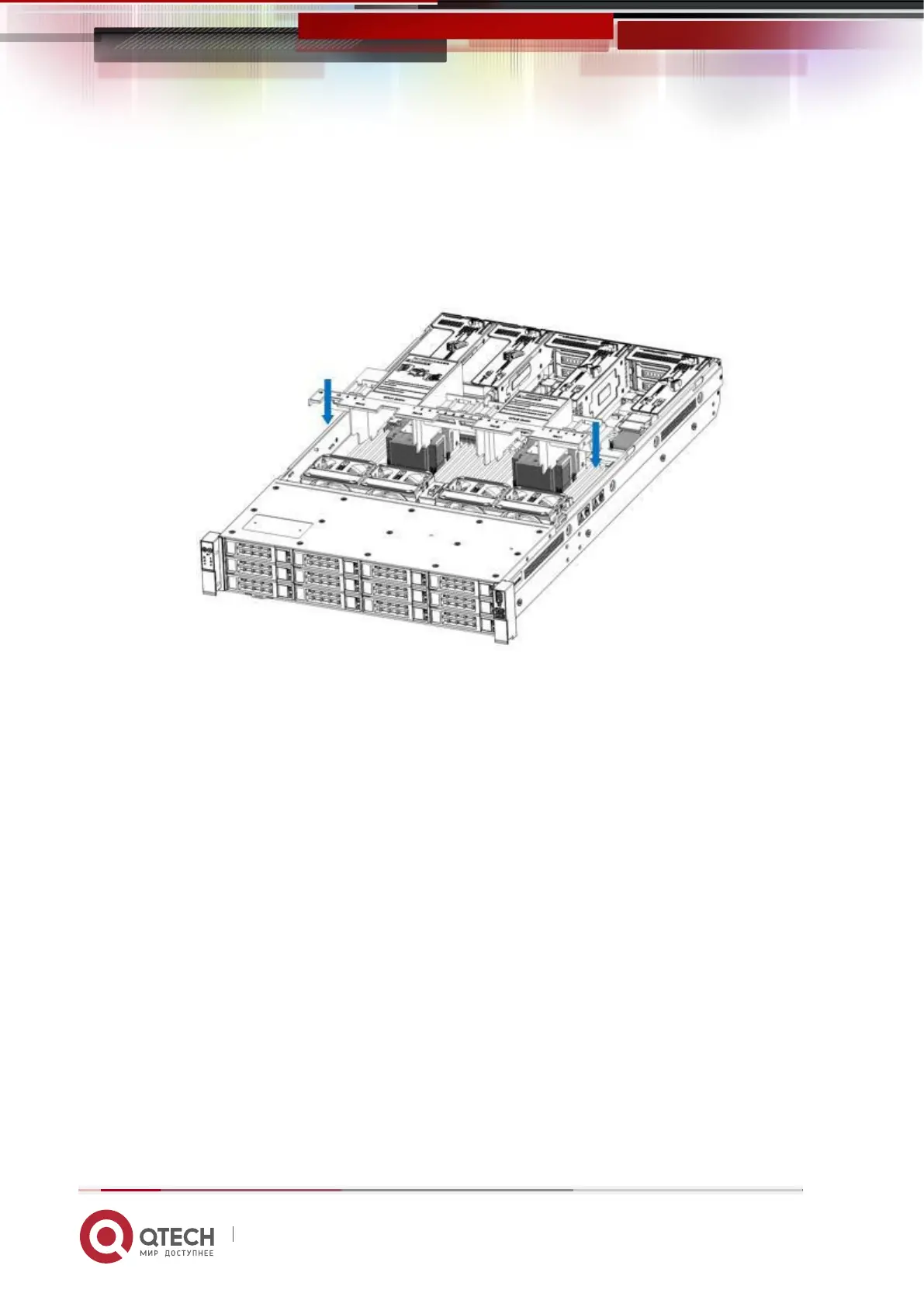

3.13 Installation of air duct
Steps: align the air baffle module with the hanging points on the left and right sides and
place it vertically downward-the height is lower than the height of the cabinet
Figure 3- 34
