Руководство пользователя
3. Installing System Components 65
www.qtech.ru

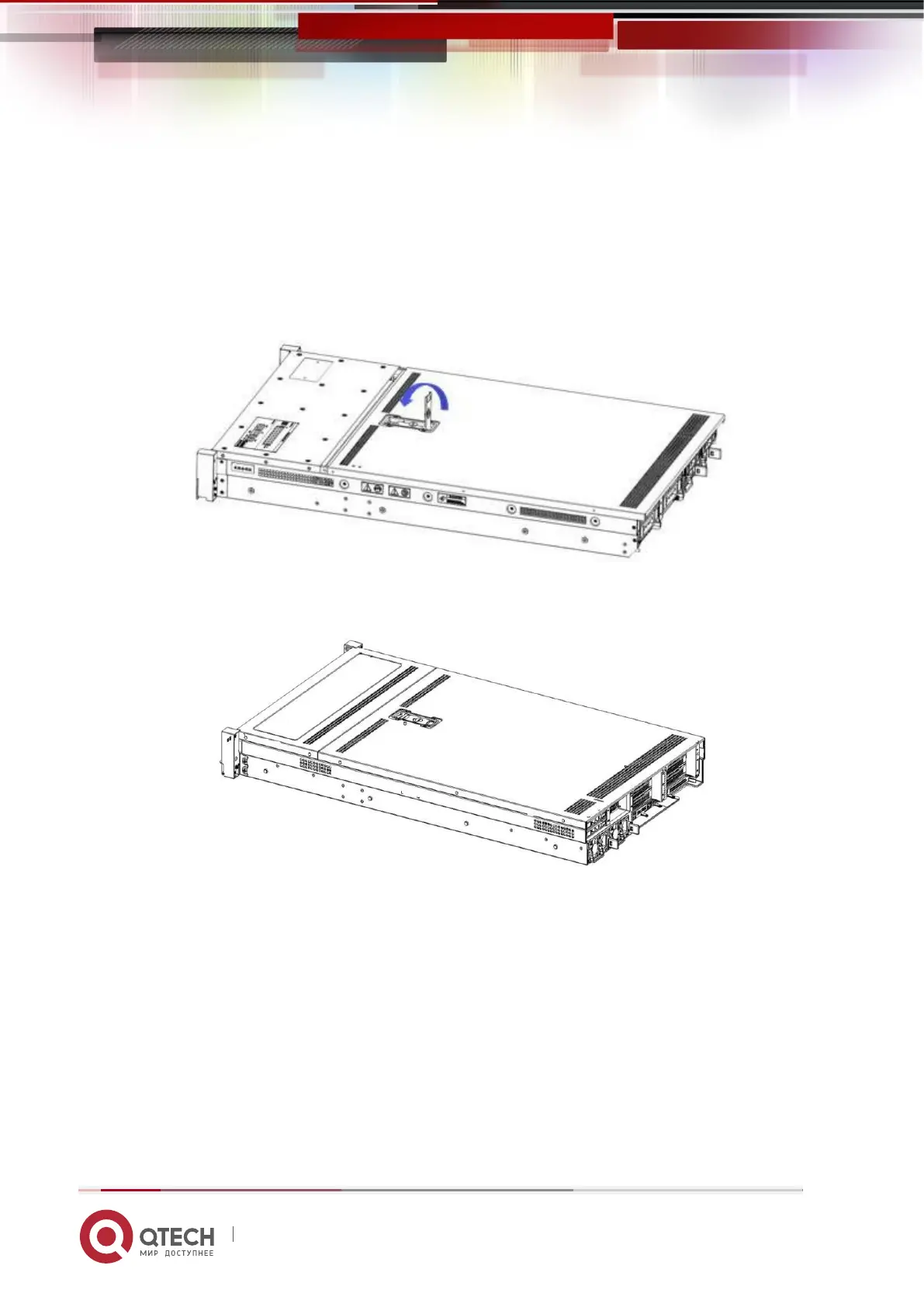

3.15 Installation of the upper cover of the chassis
Step 1: Install the back cover of the chassis
1. Align the top cover with the opening position of the box and place it down
2.
Rotate the upper cover lock in the direction of the arrow to lock it in place
Figure 3-38
Figure 3-39
