QTech QSRV-26 Series User Manual

Руководство пользователя
2. Product Introduction 34
www.qtech.ru

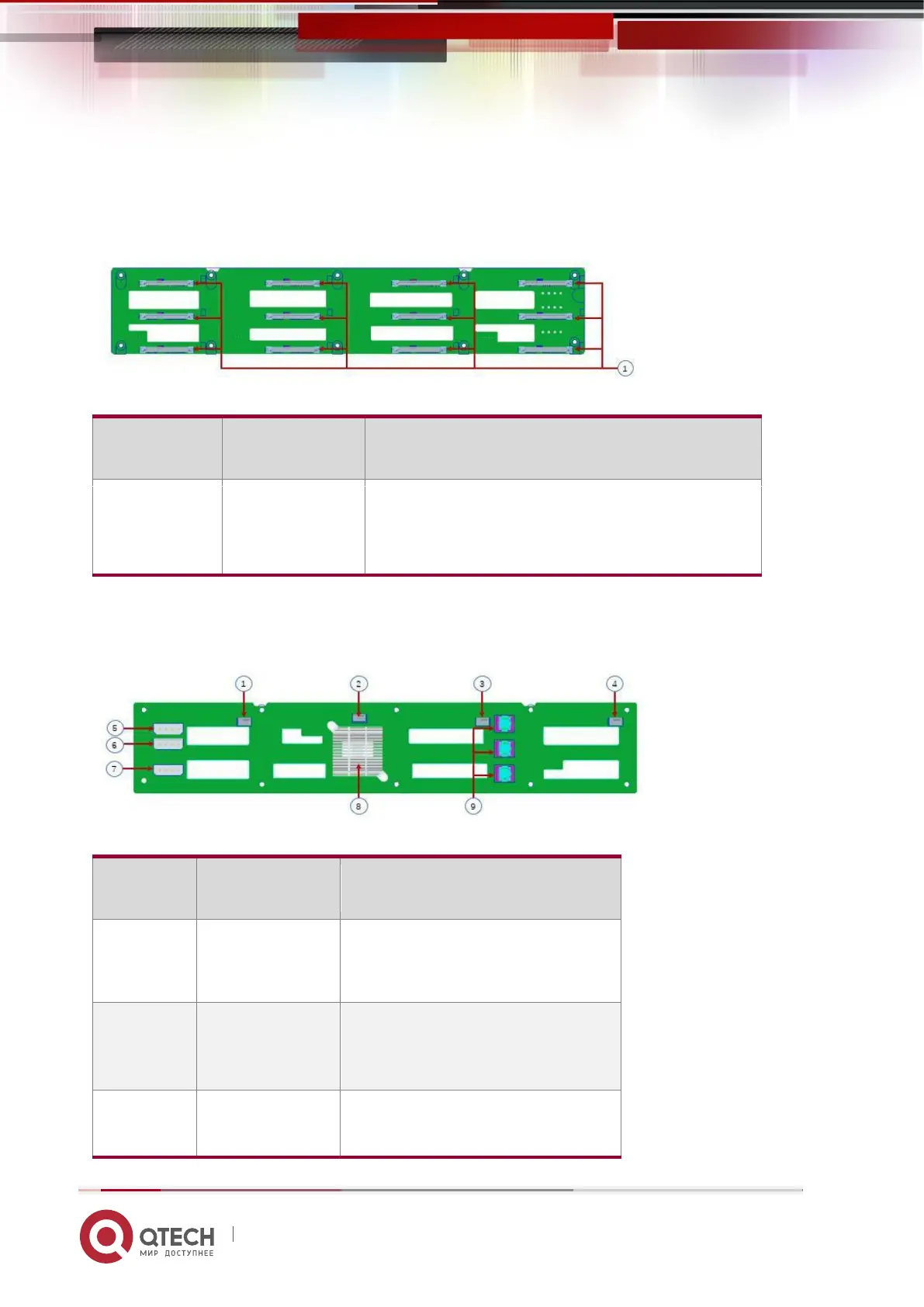

2.4.4 Hard disk backplane assembly
❖ 2U12 expansion backplane as shown
TOP noodles
Figure 2-10
Serial
number
description
Features
1
SAS/SATA
hard disk
connector
Maximum support 12G/b SAS hard disk;
Maximum support 6G/b SATA hard disk;
Supports hot swap of SAS/SATA hard disks.
Table 1-16
Bottom surface
Figure 2- 11
Serial
number
description
Features
1, 2, 3, 4
Temperature
control fan
socket
For 12G/b SAS or 6G/b SATA
Number transmission.
5, 6, 7
Power
connector
Backplane power transmission
connector for 12V power supply
Transmission.
8
EXPANDER
chip
PM8043 SXP 24Sx12G
24-port 12G SAS Expander
