2. Product Introduction 35
www.qtech.ru
9
MINI SAS HD
high
Fast connector
Used for 12G/b SAS or 6G/b
SATA signal transmission.
10
PMBUS
connector
The backplane power
management bus is used to
connect and communicate
between the backplane and the
motherboard.
Table 1-17

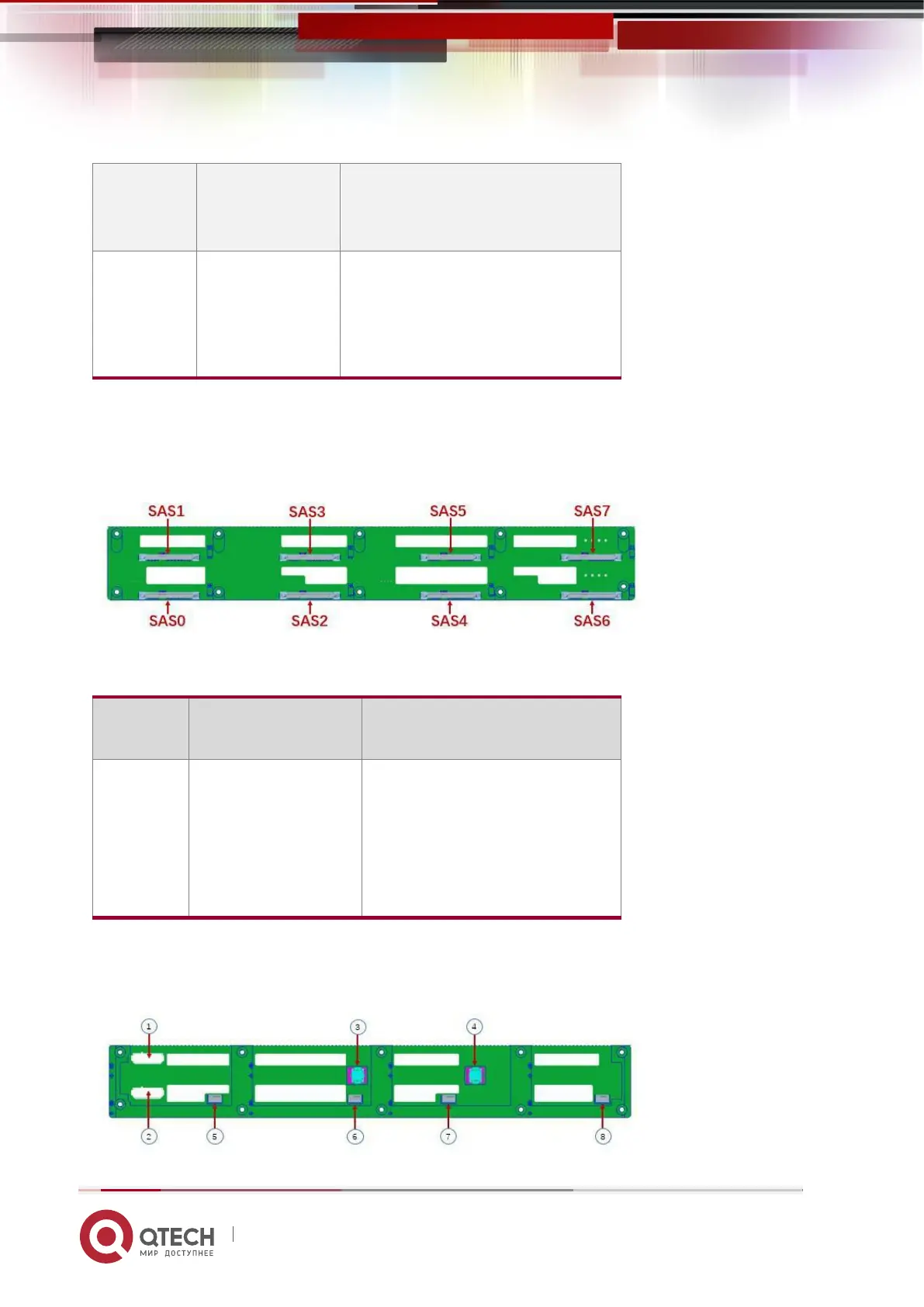

❖ 2U8 expansion backplane as shown
TOP noodles
Figure 2-12
Serial
number
description
Features
SAS0~7
SAS/SATA hard
disk connector
Maximum support 12G/b
SAS hard disk;
Maximum support 6G/b
SATA hard disk;
Supports hot swap of
SAS/SATA hard disks.
Table 1- 18
Bottom surface

QTech QSRV-26 Series Specifications
