QTech QSRV-26 Series

Руководство пользователя
2. Product Introduction 36
www.qtech.ru
Figure 2-13
Serial
number
description
Features
1, 2
ATX power input
Backplane power
transmission connector
for 12V power
transmission
3, 4
SFF-8643 12Gb SAS
interface
Backplane bay signal
interface
5, 6, 7, 8
Temperature control
fan socket
For 4pin fan interface
Table 1- 19

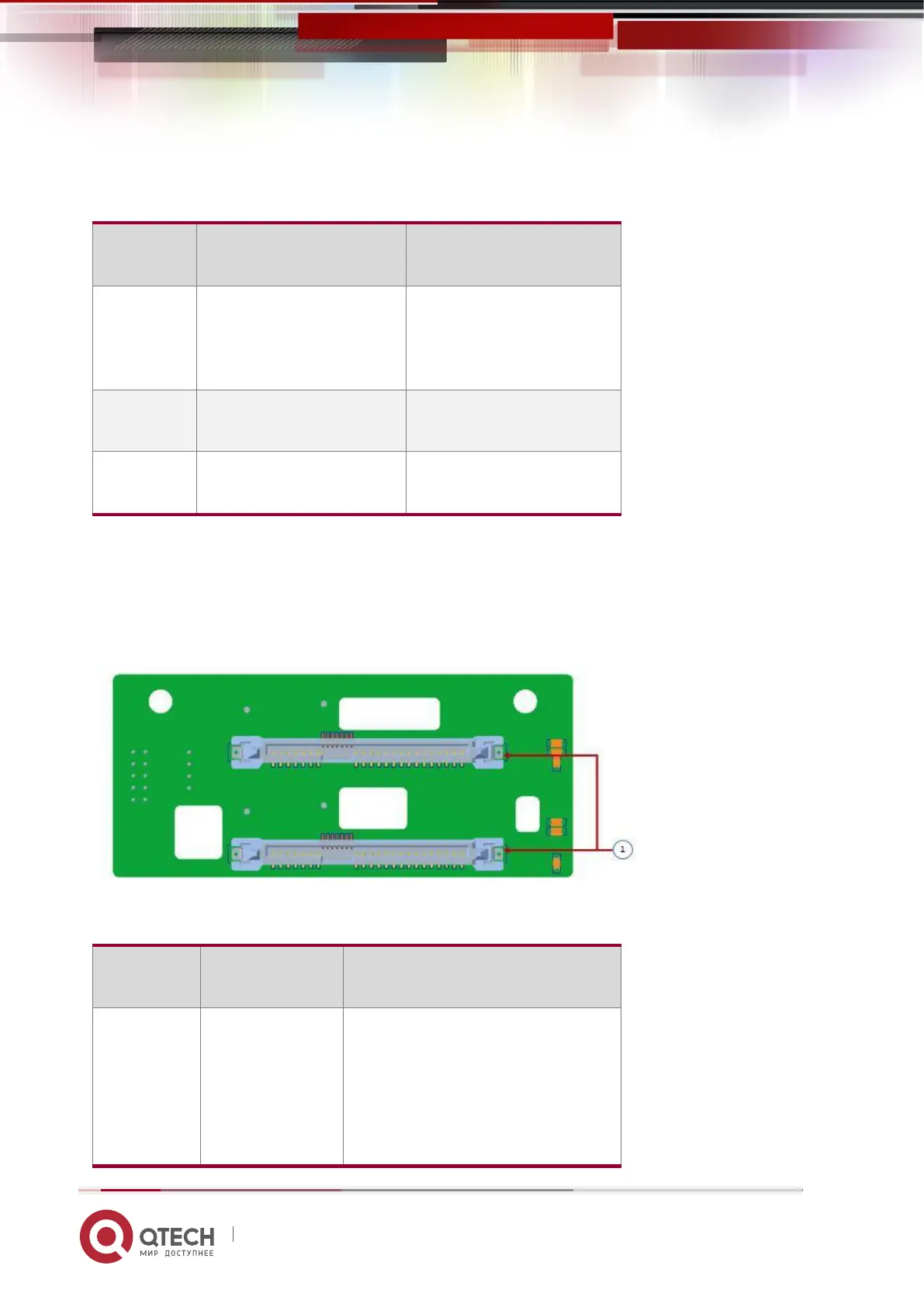

❖ SAS/SATA backplane as shown
TOP noodles
Figure 2- 14
Serial
number
description
Features
1
SAS/SATA
connector
Maximum support 12G/b SAS
hard disk;
Maximum support 6G/b SATA
hard disk;
Supports hot swap of
SAS/SATA hard disks.
