Руководство пользователя
2. Product Introduction 37
www.qtech.ru
Table 1-20
Bottom surface

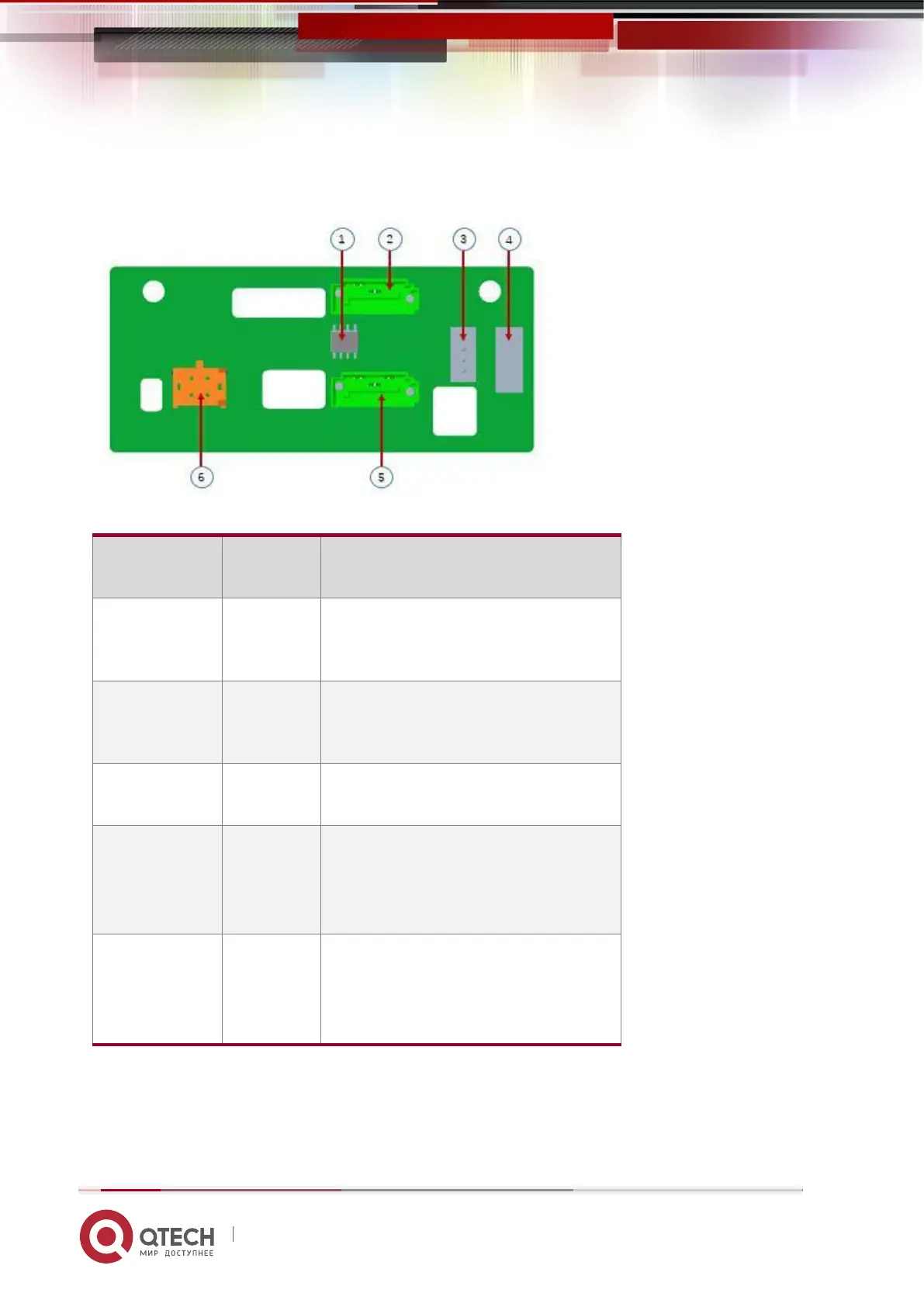

Figure 2-15
Serial
number
descripti
on
Features
1
Temperat
ure
sensor IC
Temperature sensor chip
2, 5
7PIN
SATA
interface
SATA disk signal line interface
3
I2C
interface
For I2C signal interface
4
SGPIO
lighting
signal
Used for hard disk LED
positioning and fault LED
indication
Features.
6
Power
connecto
r
Backplane power transmission
connector for 12V power
transmission
lose
Table 1- 21
❖ U.2 backplane as shown
