3 INSTALLING SYSTEM COMPONENTS
3.1 CPU installation
❖ Install the processor:
Step 1: CPU installation
1. Tilt the CPU angle as shown in the figure, the A1 corner (triangular mark) is aligned,
and it is stuck on one end of the clamping piece.
2. Direction, press the other end of the clamp to fix the CPU to the clamp.

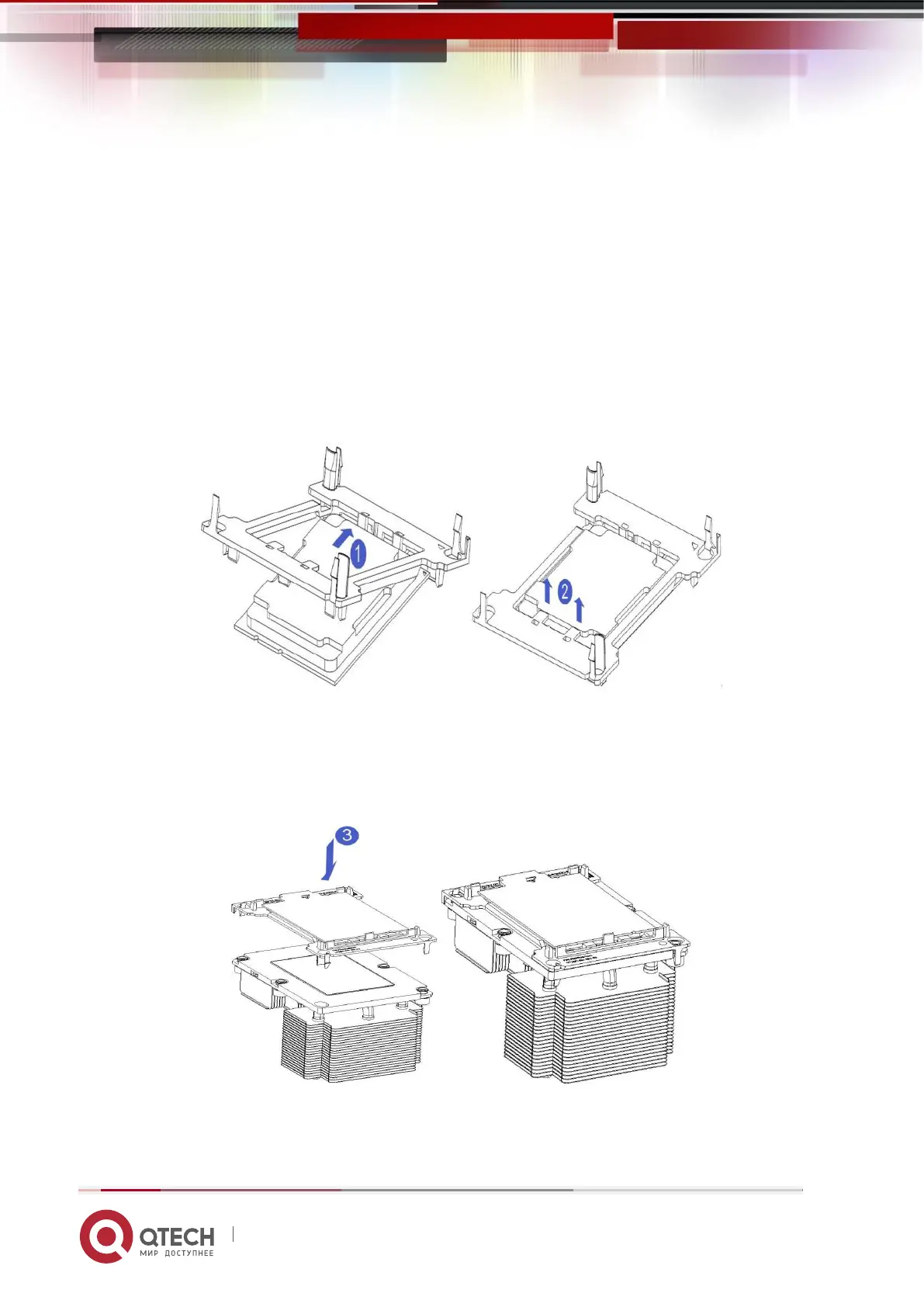

Figure 3-1
Figure 3-2
Step 2: Install the CPU on the radiator to ensure that the surfaces of the CPU and
the radiator are clean and free of oil and foreign matter. (As shown below)
1. Apply approximately 0.4ml thermal grease on the CPU and smooth it evenly.
2. Align the A1 corner (triangular mark) and buckle the CPU on the heat sink.
Figure 3-3 Figure 3-4
