Руководство пользователя
3. Installing System Components 59
www.qtech.ru

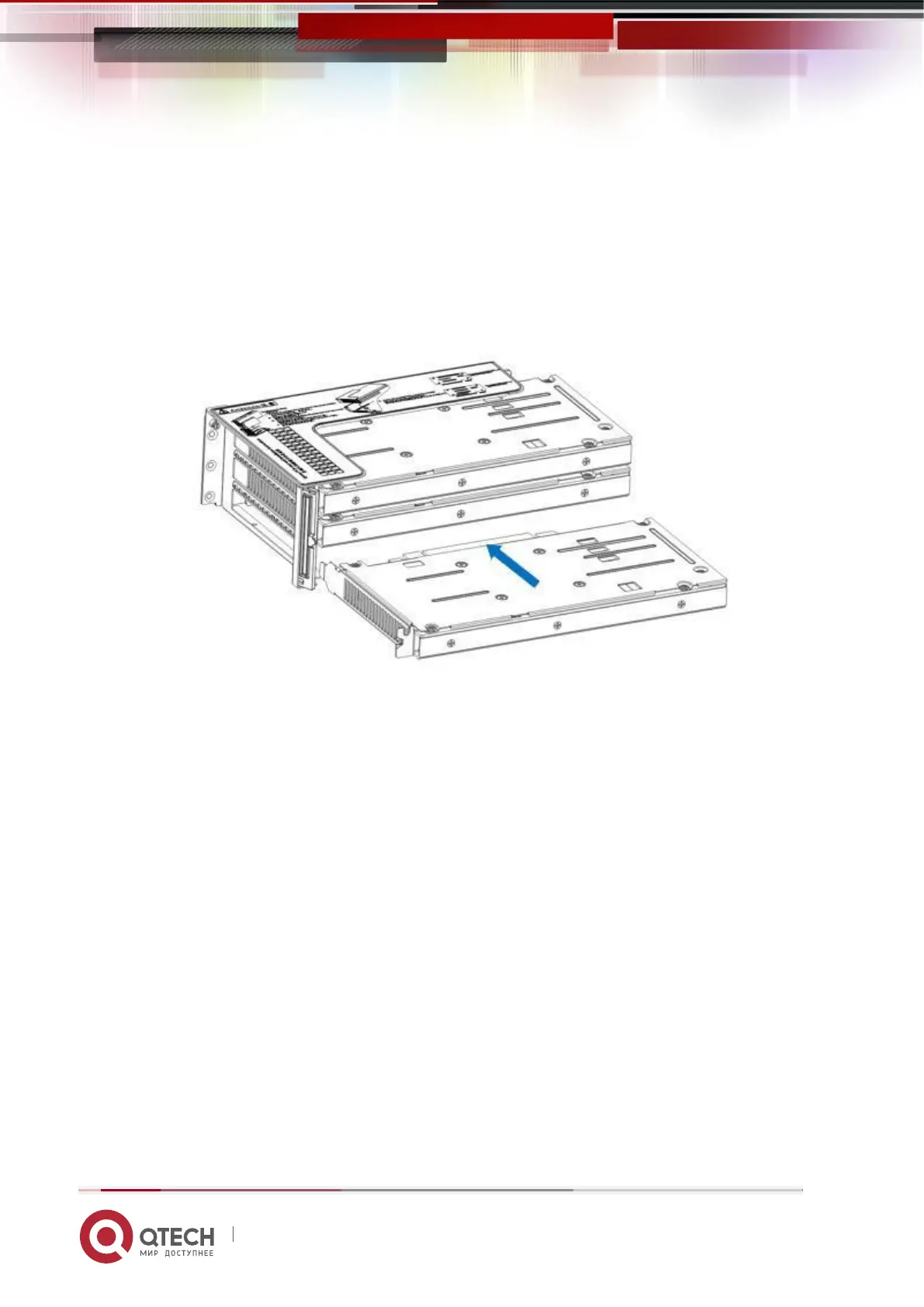

3.11 PCI-E expansion card installation
Steps: install PCIE card
1. Install the PCIE card in the direction indicated in the figure
2. Rotate the PCIE card lock
3. Follow the arrow scheme to lock the PCIE card lock
Figure 3- 29
