Figure 3-12

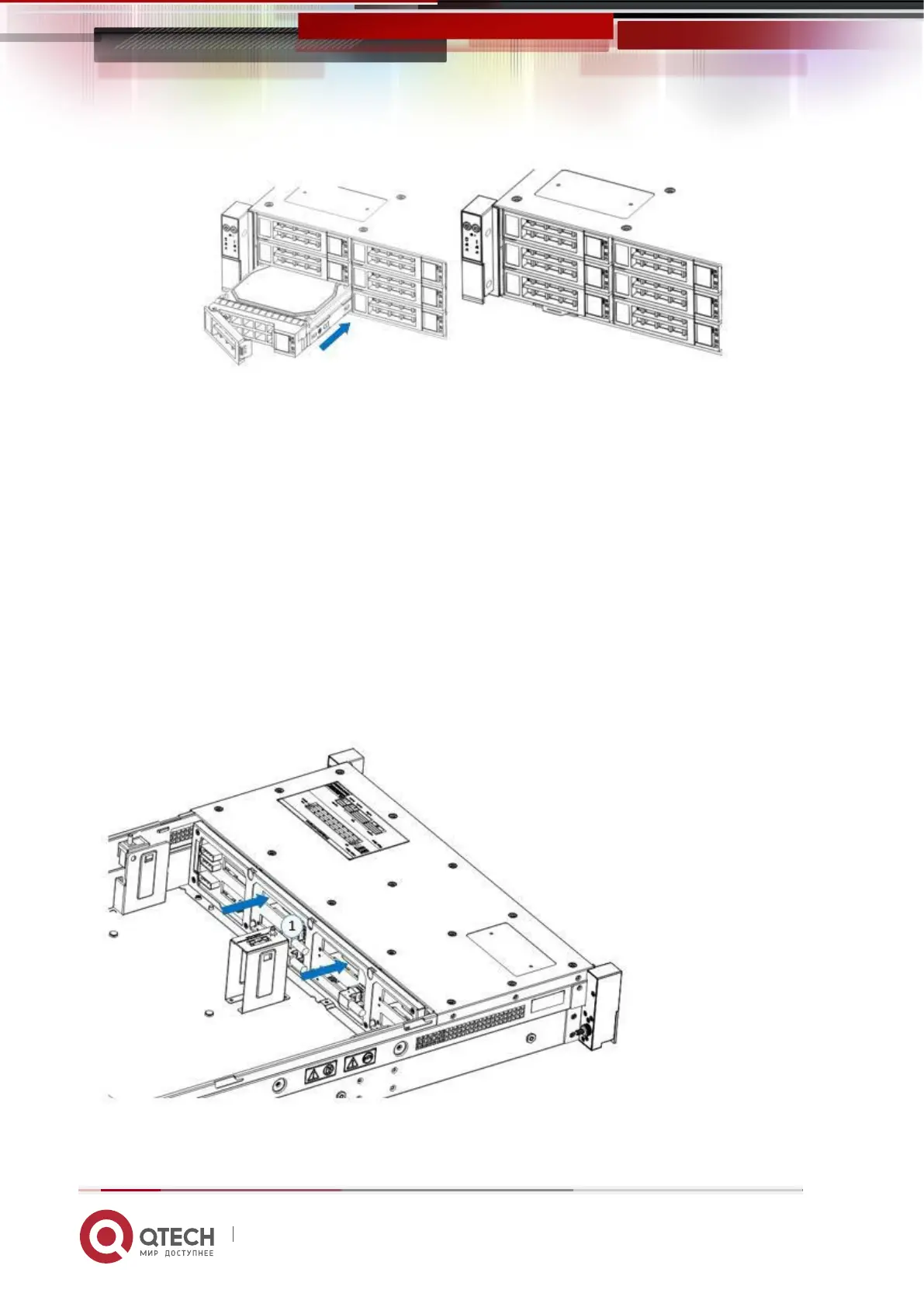

3.5 Front hard disk backplane installation.
❖ Front hard disk backplane installation:
1. Align the gourd holes and hanging holes on the left and right sides of the hard disk
backplane with the hanging nails of the hard disk frame and push in the direction of
the arrow
2. After the hard disk backplane is pushed into place, press the backplane down until
the gourd nails and hanging holes on both sides are all in place
3. Turn over the fixing parts on the left and right sides of the hard disk backplane and
lay the fixing parts flat.
Figure 3-13
To Next Page
