QTech QSRV-26 Series User Manual

Руководство пользователя
3. Installing System Components 52
www.qtech.ru
3.6 M.2 SSD installation
Step 1: Install the positioning studs according to the length of the M.2 card to be
installed.

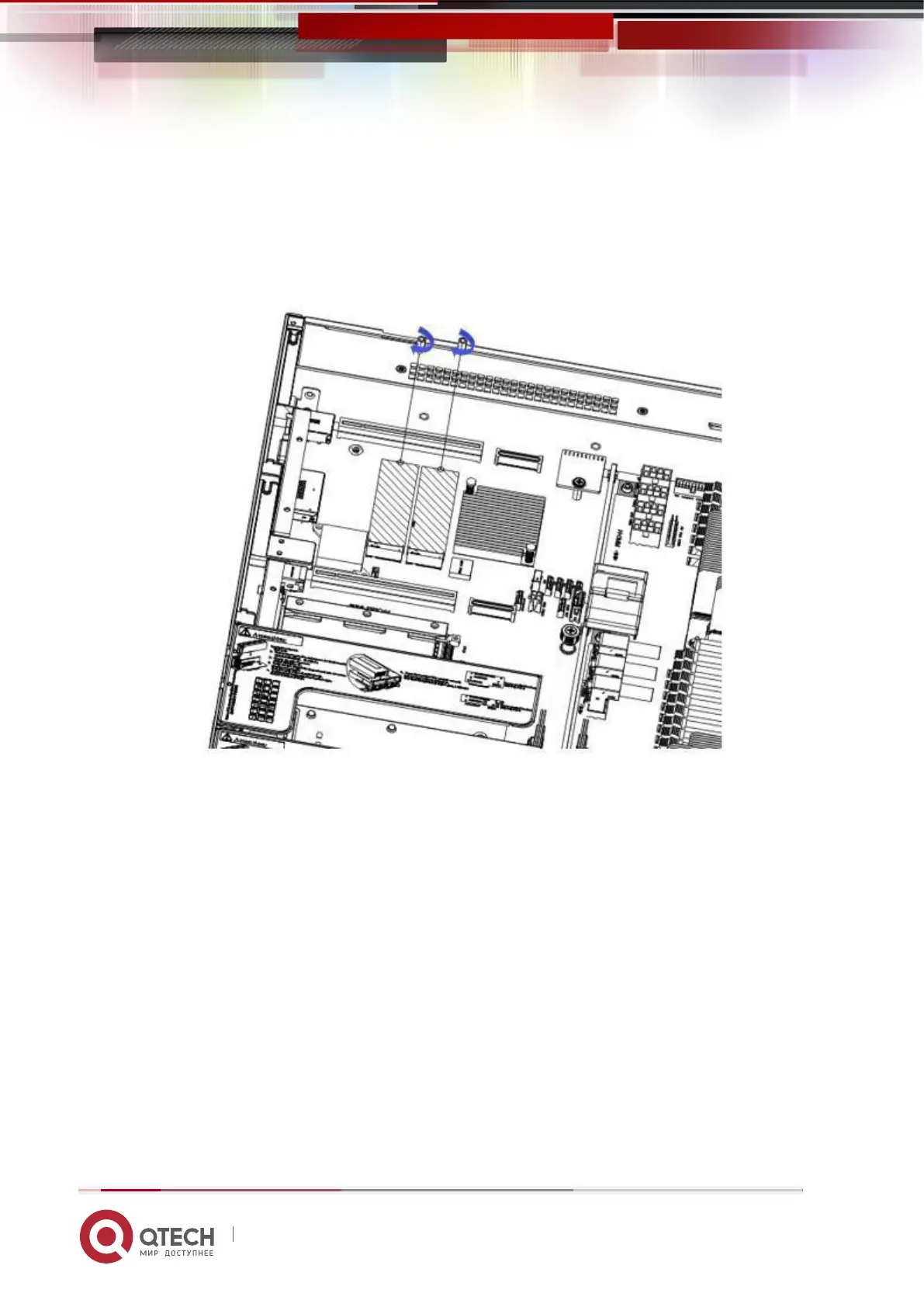

Figure 3-16
Step 2: install M.2 card
1. Insert the M.2 card connector end into the motherboard connector as shown in the
figure.
2. Press the other end of the M.2 card to the plane of the positioning stud in step 1.
