QTech QSRV-26 Series User Manual

Руководство пользователя
2. Product Introduction 39
www.qtech.ru
1, 5
Slimline 4i
Connector
Provide PCIe×4 interface to
connect CPU and NVME
SSD1 (including CPU PEHP
I2C and BMC I2C signal)
2
CPLD chip
For data logic processing
3
JATG debug
interface
JTAG debugging interface,
used to edit CPLD
Process and version
upgrade
4
Power outlet
4 Pin power socket, used to
dock PSU or
Docking MB 4 Pin plug to
power the board
Table 1-23

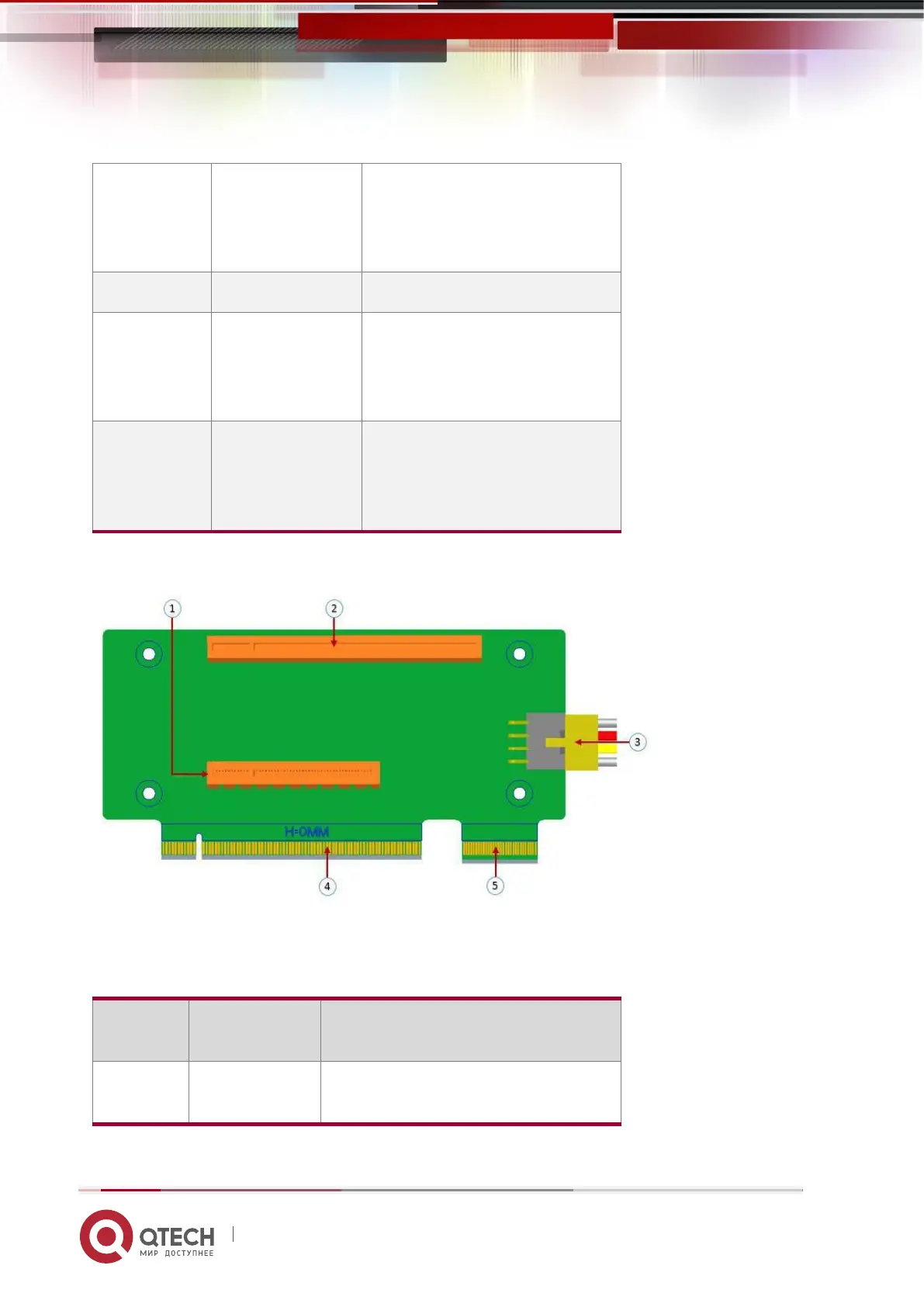

Figure 2- 18
Serial
number
description
Features
1
PCIE 3.0 X8
Slot
Used for PCIe 3.0 X8 devices.

QTech QSRV-26 Series Specifications

General

Brand	QTech
Model	QSRV-26 Series
Category	Server
Language	English
