Preparing for Use
R&S
®
FPC
13User Manual 1178.4130.02 ─ 07

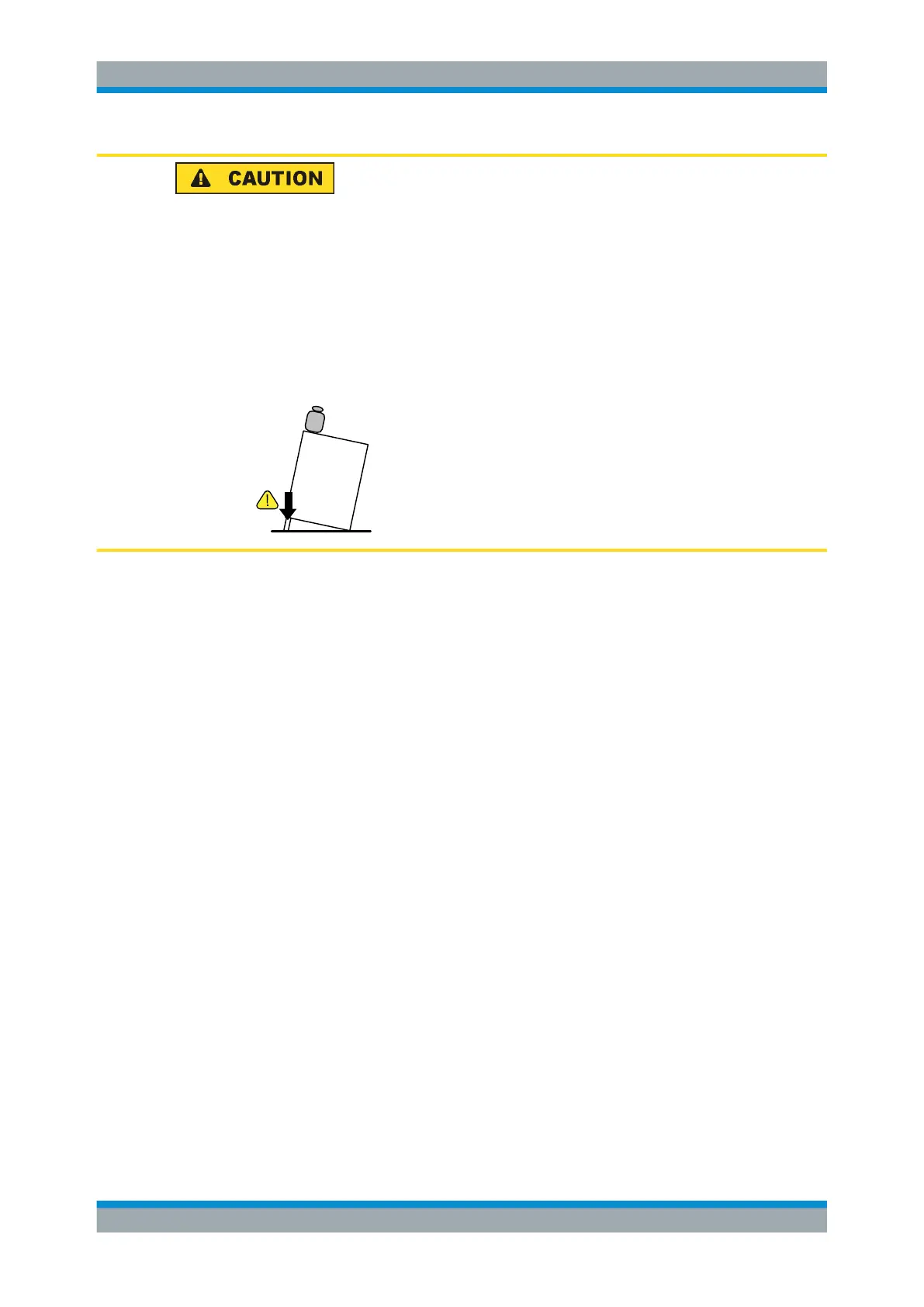

Risk of injury if feet are folded out
The feet can fold in if they are not folded out completely or if the instrument is shifted.
This can cause damage or injury.
●
Fold the feet completely in or out to ensure stability of the instrument. Never shift
the instrument when the feet are folded out.
●
When the feet are folded out, do not work under the instrument or place anything
underneath.
●
The feet can break if they are overloaded. The overall load on the folded-out feet
must not exceed 200 N.
F
max
3.3 Connecting AC Power
The AC power connector on the rear panel of the R&S FPC allows you to connect it to
the primary power supply.
Included in the delivery of the R&S FPC are several common power plug types.
1. Select the cable with the plug type you need and firmly connect it to the R&S FPC.
2. Connect the AC plug to the power outlet to supply the R&S FPC with power.
The R&S FPC is assembled in line with the specifications for safety class
EN61010. Therefore, it may only be connected to an outlet that has a ground con-
tact.
The AC power supply has the following characteristics.
● Line voltage: 100 V AC to 240 V AC
● Line frequency: 50 Hz to 60 Hz; 400 Hz
● Current: 0.6 A to 0.4 A
3.4 Turning the R&S FPC on and off
After you have established a connection to the power supply, you can turn on the
R&S FPC.
Turning the R&S
FPC on and off
