"Analysis"
For more information about the contents of the "Analysis" pane, see Chapter 14.8,
"Trace Configuration", on page 113.
●
"Trigger"
For more information about the contents of the "Trigger" pane, see Chapter 14.7,
"Trigger Configuration", on page 112.
14.2 Measurements and Result Displays
The R&S FPC allows you to measure a signal in the frequency domain or the time
domain.
You can also equip the R&S FPC with optional extended measurement functions like
harmonic distortion or OBW measurements. These measurements provide settings
and tools for special measurement tasks.
Measuring basic spectrum characteristics
Basic spectrum measurements require no optional equipment on the R&S FPC.
1. Connect a DUT to the RF input of the R&S FPC.
2. Turn on the R&S FPC.
The R&S FPC measures the characteristics of the DUT in the frequency domain
with the default configuration. It shows the results as a line trace in the diagram
shown on the display.

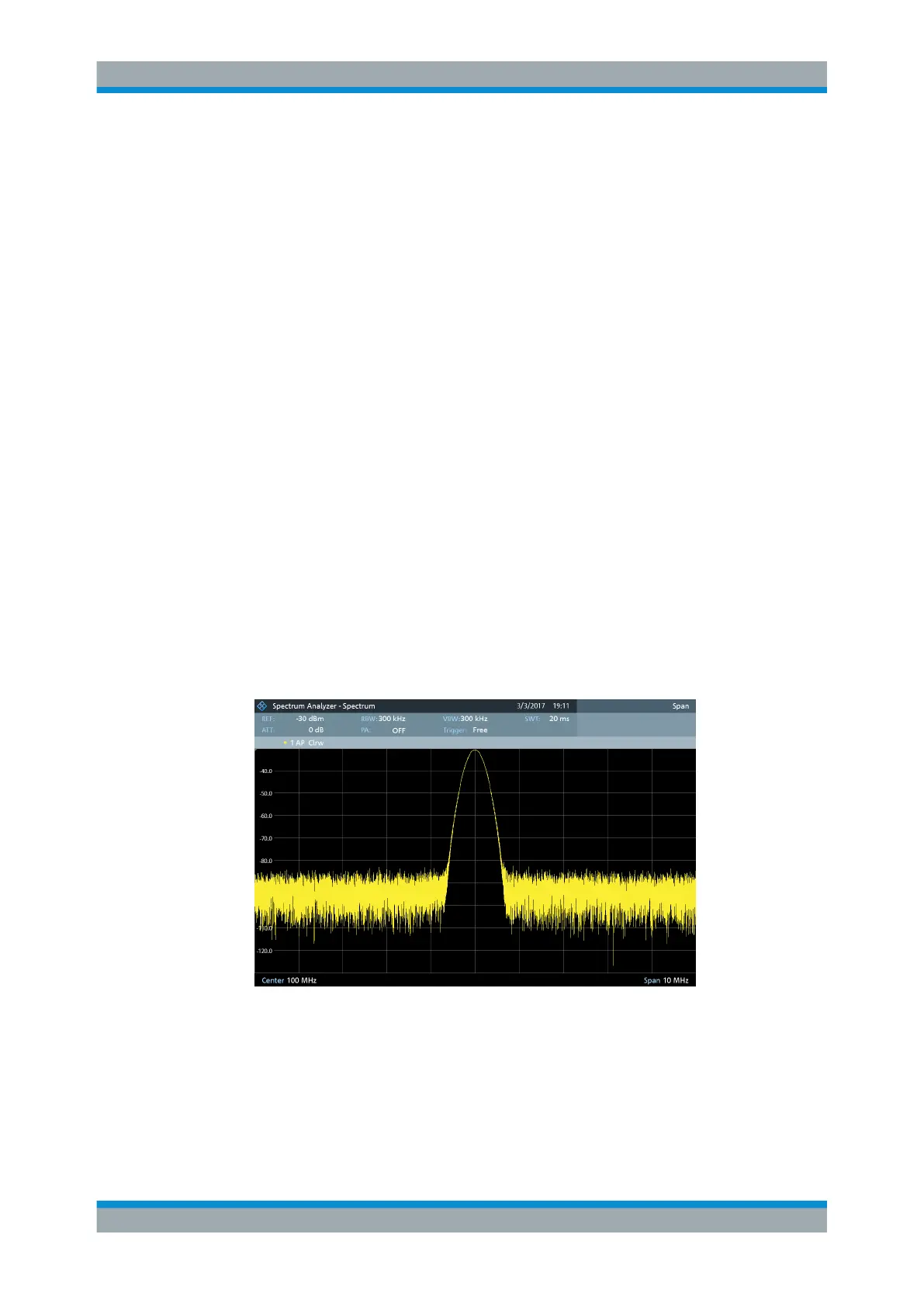

Figure 14-2: Display of a signal in the frequency domain
Alternatively, you can measure the DUT characteristics in the time domain.
Measurements and Result Displays
