Installation and Service manual

Compass STD 22

Edition: May 20, 20053646/110 --233.DOC010302

3.4.2.5 Connecting the compass to earth

Compass earth connection

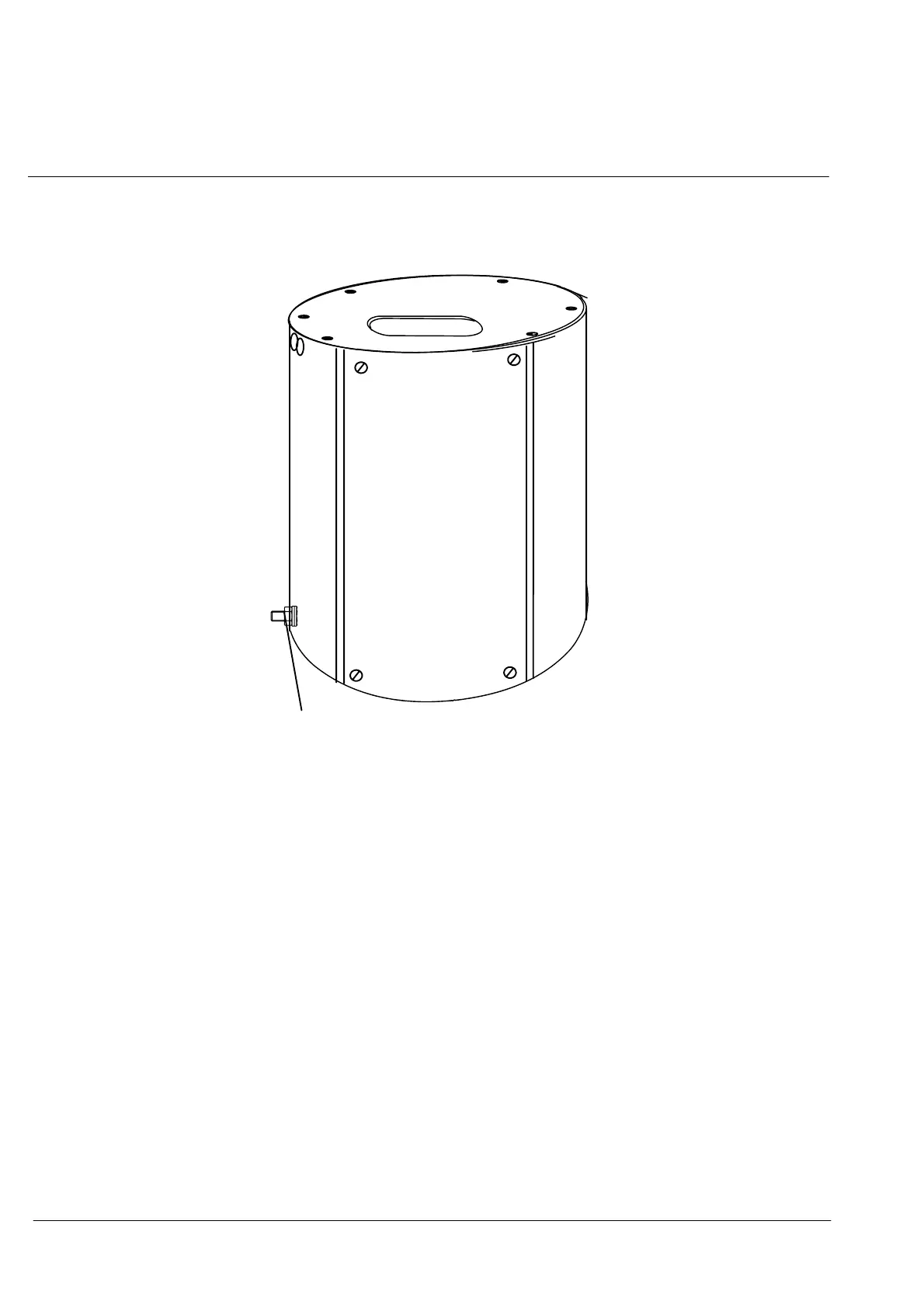

Figure 56: Connection of compass to earth

An earth connection (ship’s earth) must be made using the earthing screw shown

in Figure 56.

The earth connection must have a common reference to the other components

(Operator Unit, Distribution Unit and repeater compasses).
